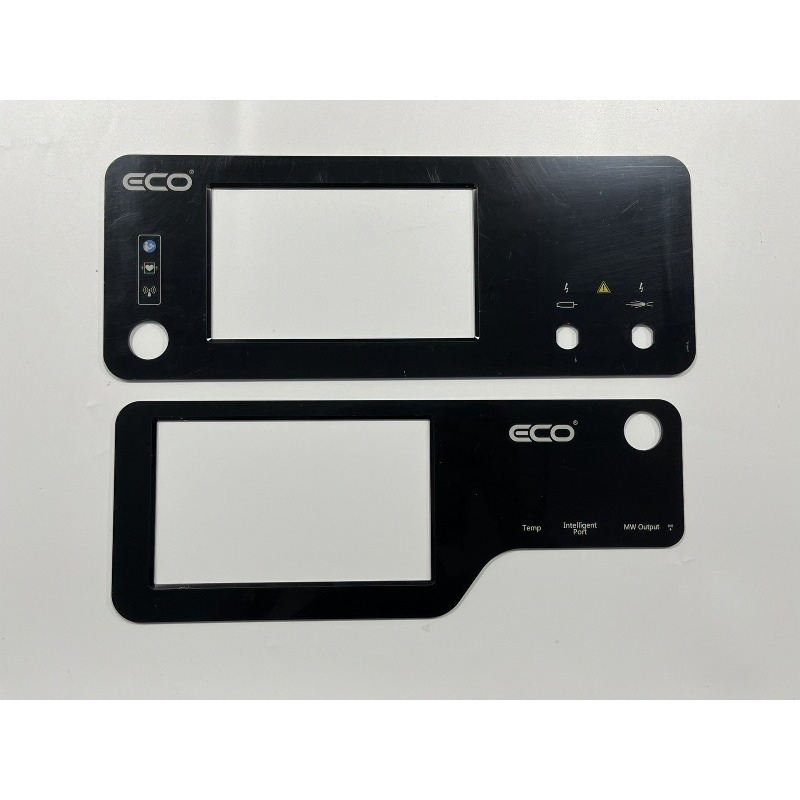

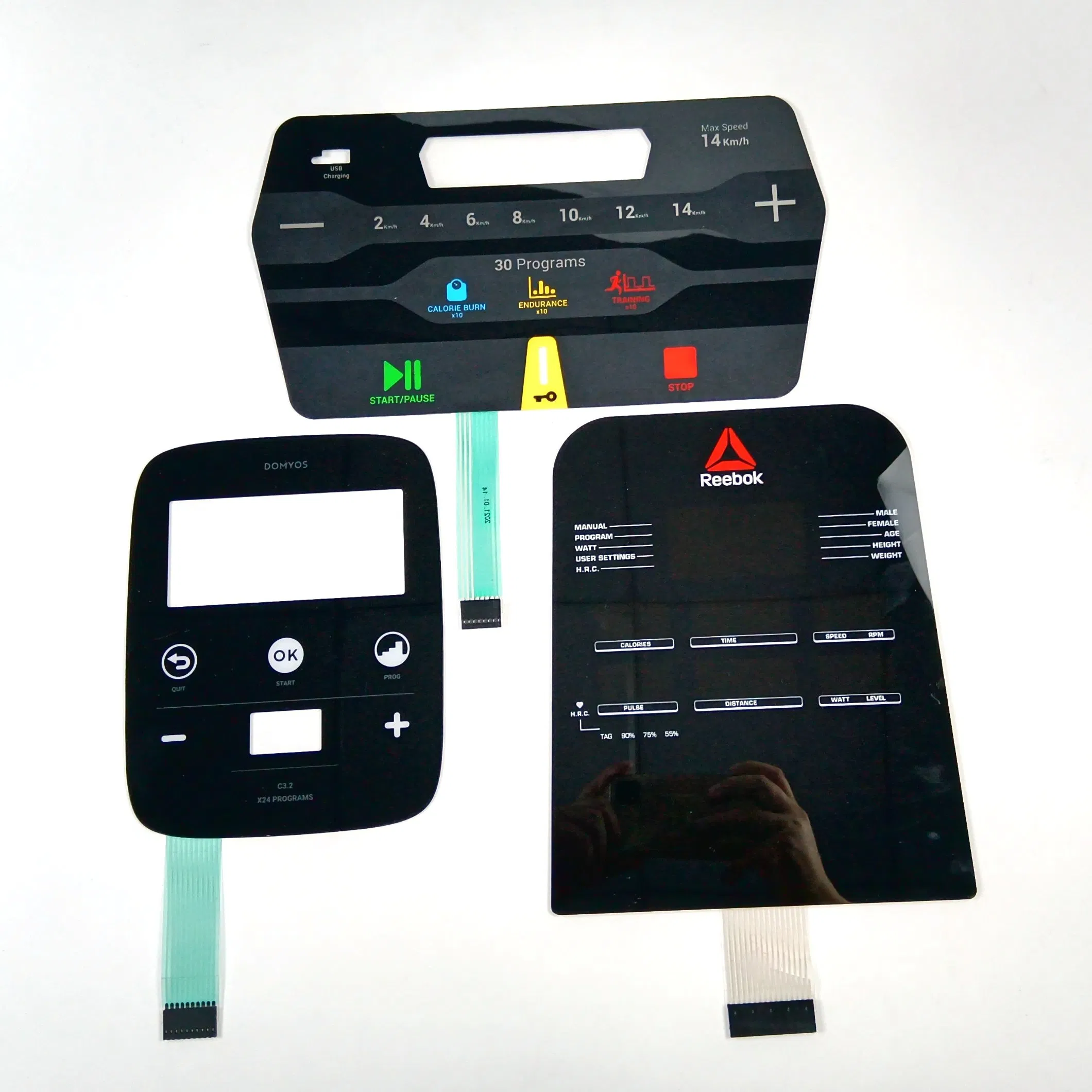

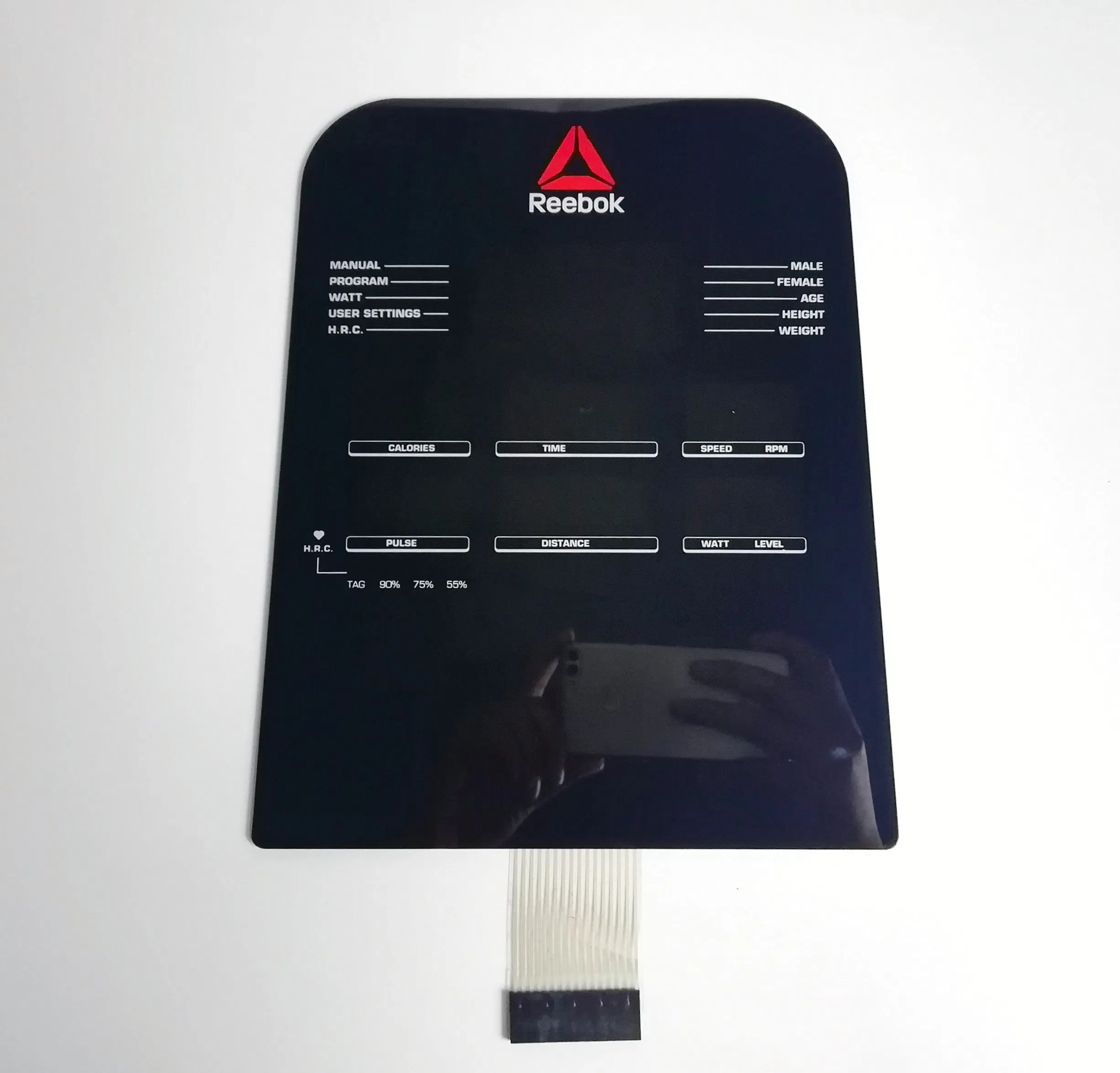

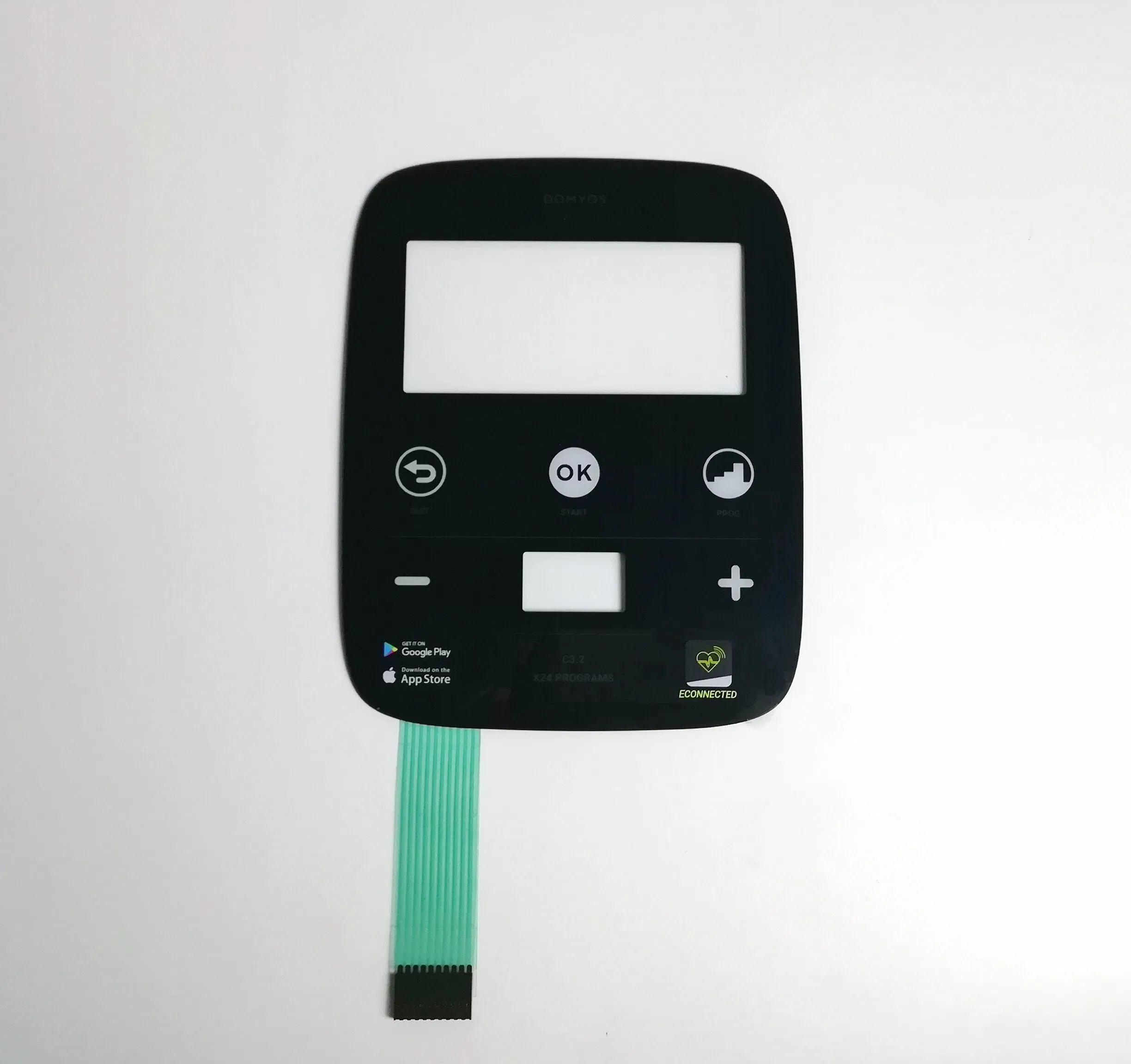

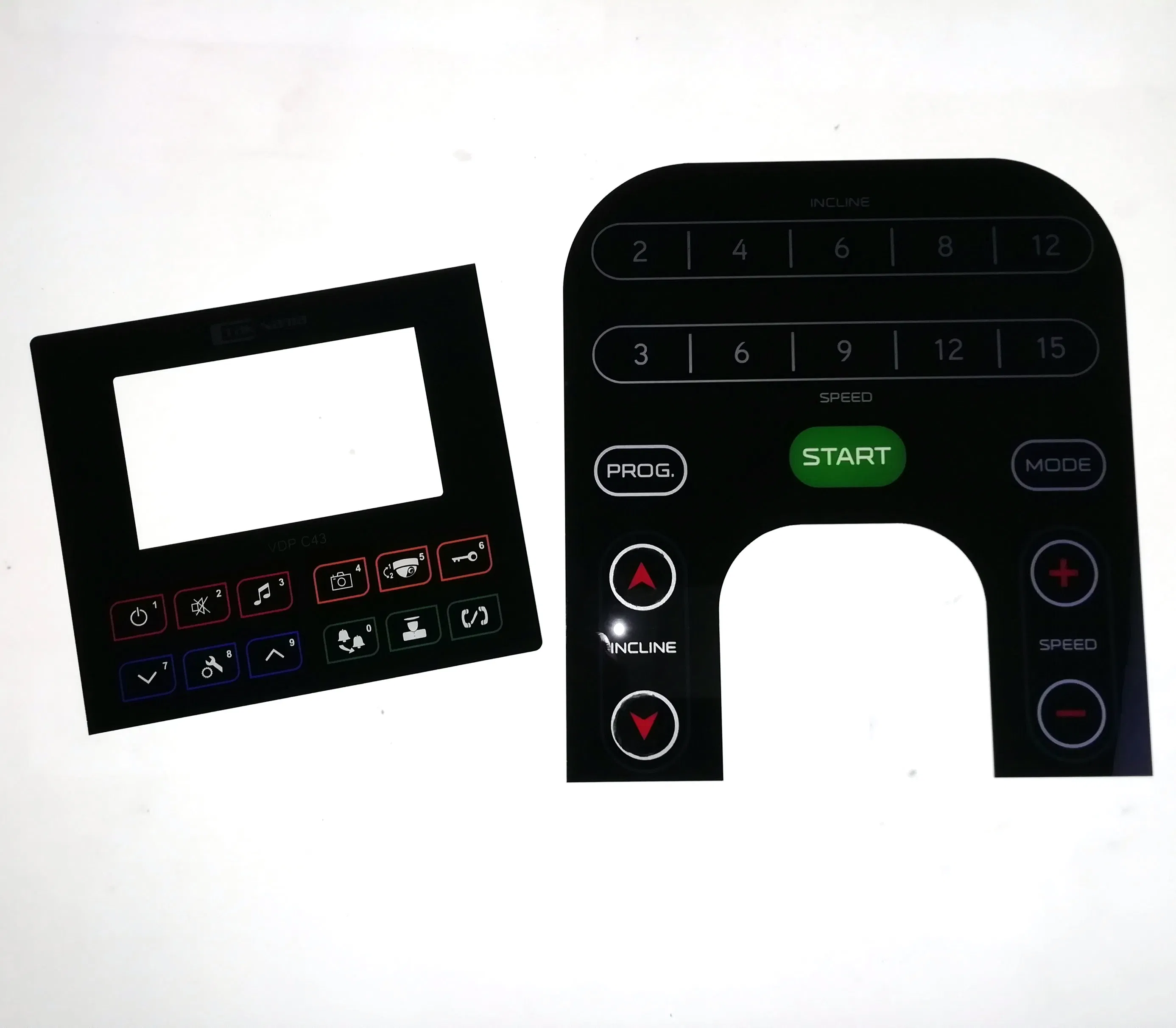

Membrane Switch Control Panel Capacitive Touch Panel Screen Printing Graphic Overlay
Membrane Switch Control Panel Capacitive Touch Panel Screen Printing Graphic Overlay
Membrane Switch Control Panel Capacitive Touch Panel Screen Printing Graphic Overlay
Membrane Switch Control Panel Capacitive Touch Panel Screen Printing Graphic Overlay
Membrane Switch Control Panel Capacitive Touch Panel Screen Printing Graphic Overlay
1 / 5
Membrane Switch Control Panel Capacitive Touch Panel Screen Printing Graphic Overlay
Membrane Switch Control Panel Capacitive Touch Panel Screen Printing Graphic Overlay
Membrane Switch Control Panel Capacitive Touch Panel Screen Printing Graphic Overlay
Membrane Switch Control Panel Capacitive Touch Panel Screen Printing Graphic Overlay
Membrane Switch Control Panel Capacitive Touch Panel Screen Printing Graphic Overlay

Membrane Switch Control Panel Capacitive Touch Panel Screen Printing Graphic Overlay

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
MP011-1
Material
Acrylic, PC, Pet, Glass, PMMA
Usage
Change-over Switch, Control Switch
Application
Home Appliance, Telecommunication, Camera
Contact Type
Touch Switch
Certification
ISO9001
Surface
Glossy / Matte Finish
Adhesive
3M Self Adhesive
Function
Waterproof, Dustproof, UV Resistant
Reliability Life
> 1 Million Times

Custom Acrylic & Glass Panel

Custom Acrylic Panel
  • Touch control panel (Acrylic/Glass/PC)
  • Capacitive touch circuit, sensitive operation
  • Laser cut for any shape - no die cost
  • Laser engraved text and icons
  • Transparent, translucent or shaded options
📋 Material Specifications
Base MaterialAcrylic, PPMA, Glass
Resistance-30ºC to 80ºC
ThicknessPlate: 0.25mm - 10.0mm
CharacteristicsHigh Temperature & Wear Resistance, High Stability
Circuit LayerSilver paste, Carbon paste, Transparent conductive silver ink

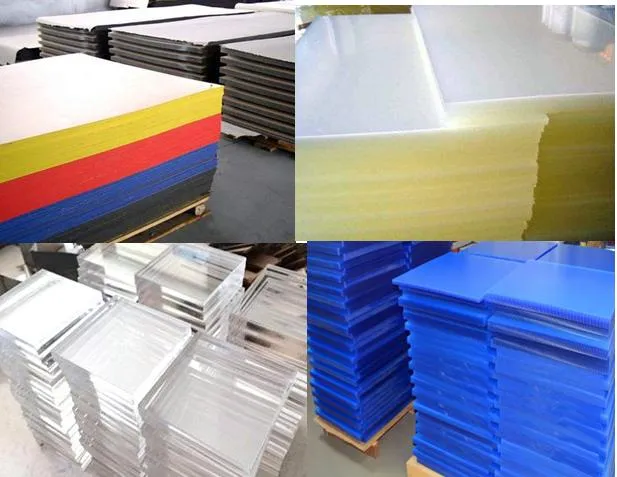

Material Display

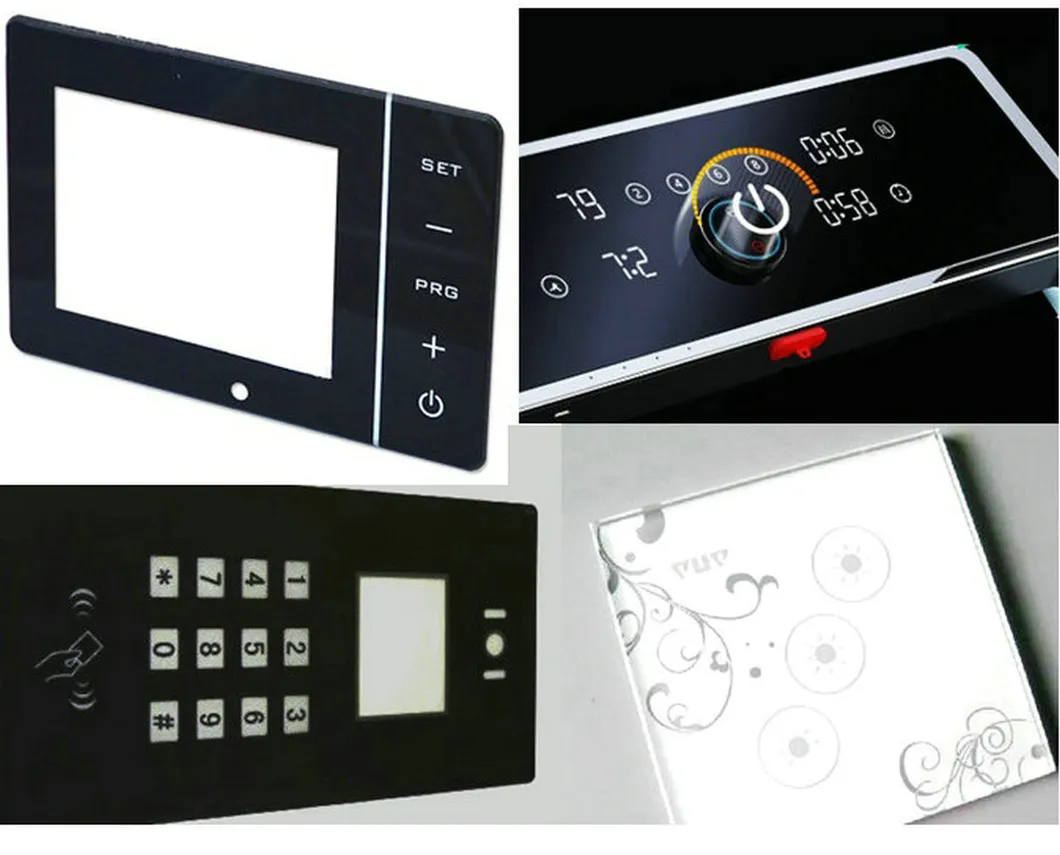

Type Display

Technical Parameters

Electrical Voltage: ≤ 35V (DC) | Current: ≤ 100mA | Contact resistance: 20 - 500 Ω | Insulation resistance: ≥ 100M Ω | Rebound time: ≤ 6ms
Mechanical Life: > 1 million times | Working force: 100 - 750g | Standard pin spacing: 2.54, 1.27, 1.0mm
Environmental Working temp: -20ºC to +70ºC | Storage temp: -40ºC to +85ºC | Humidity: 95% ± 5%
🔬 Test Equipment & Laboratory

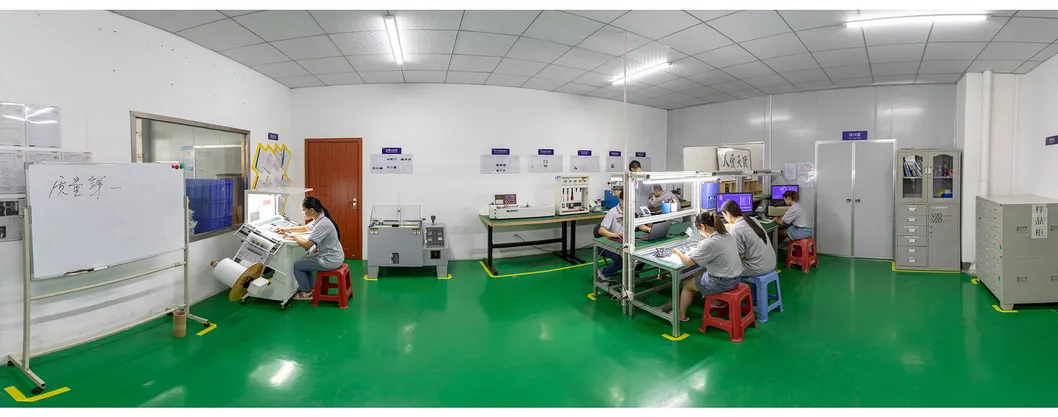

Testing Lab

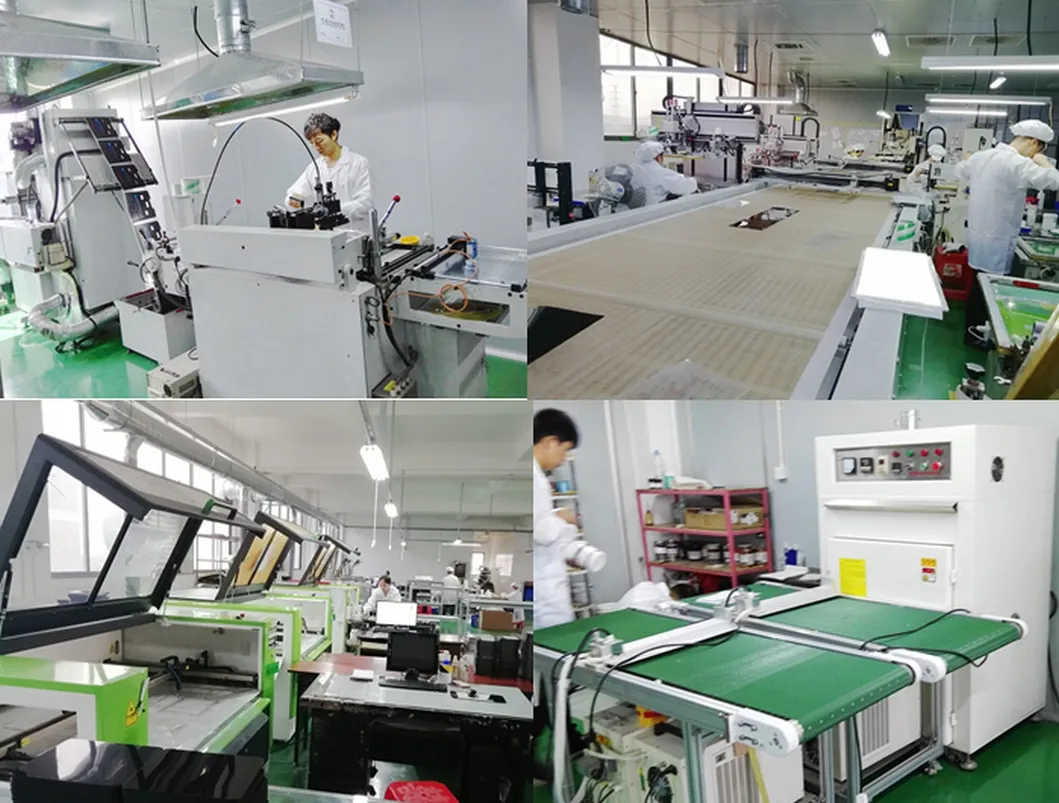

Test 1

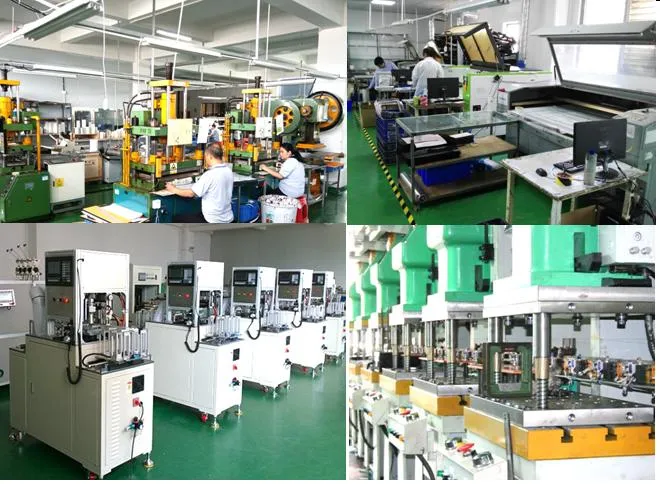

Test 2

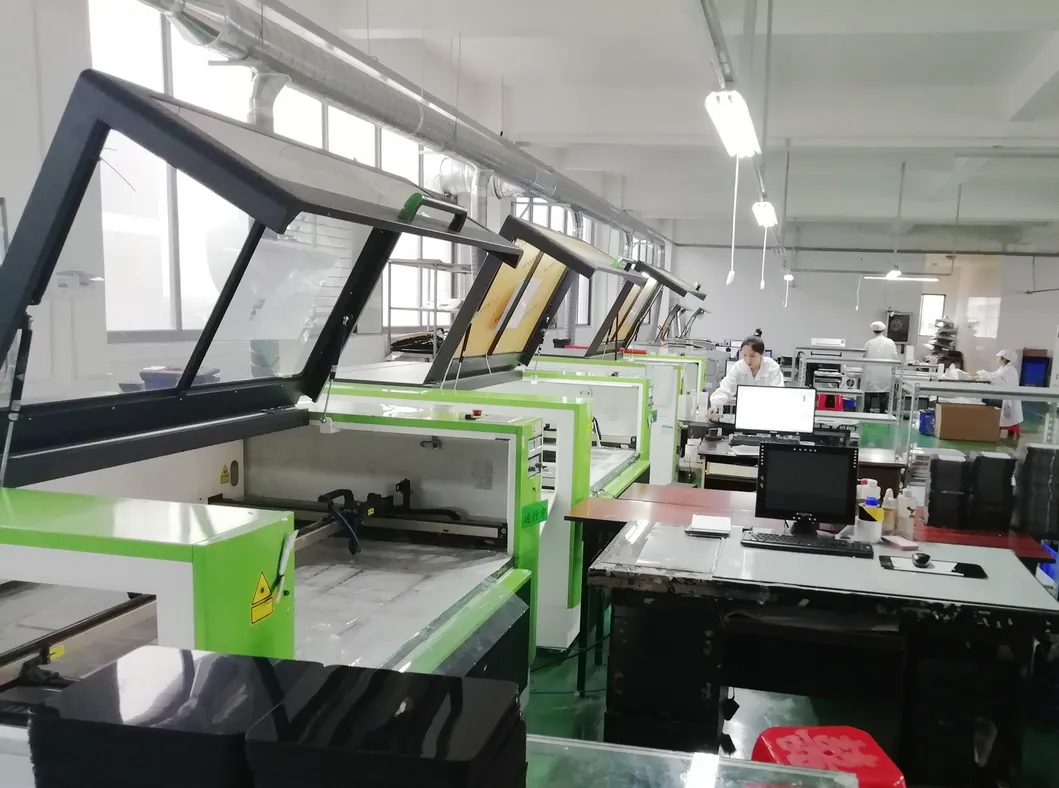

Test 3

Wide Application

Our products are widely utilized in industrial control equipment, household appliances, display instruments, medical equipment, fitness equipment, security systems, and intelligent furniture.

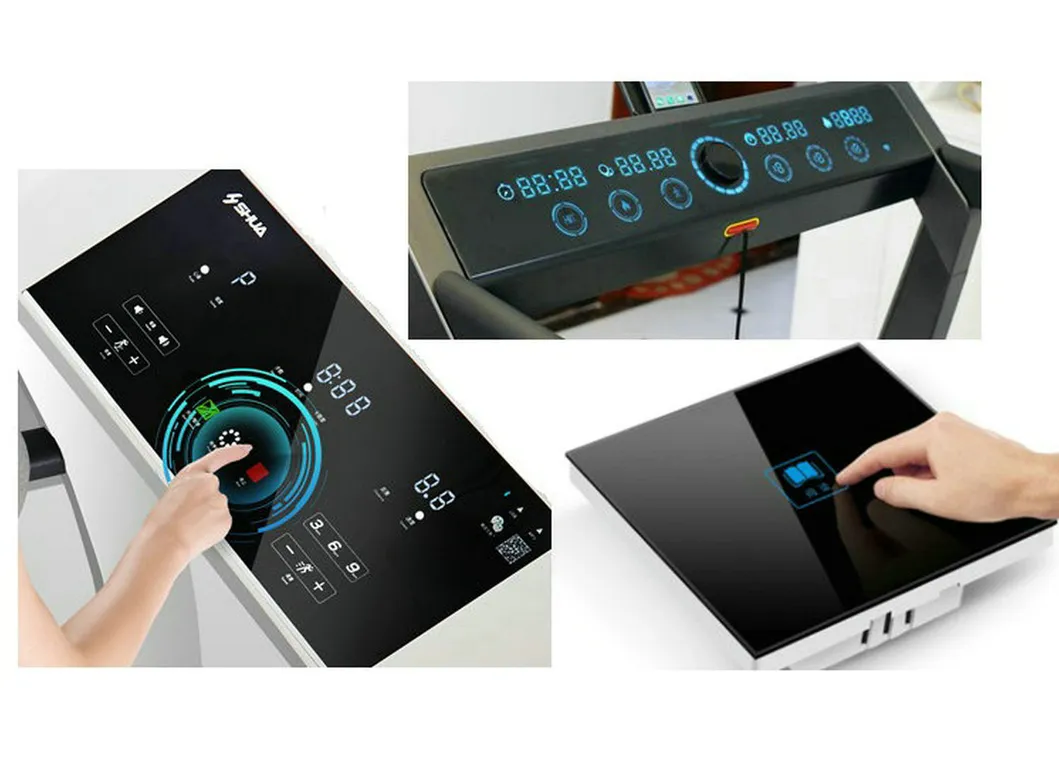

Application 1

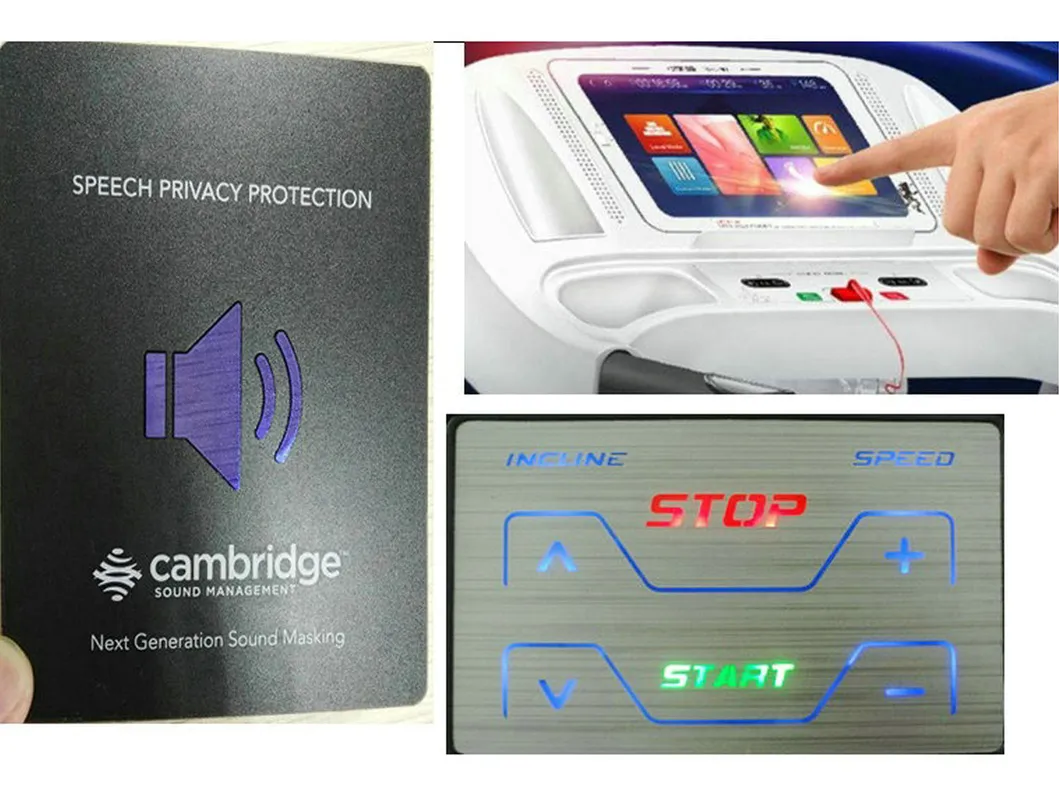

Application 2
❓ Frequently Asked Questions
Q1: What design file formats are required for customized products?
A1: AI or PDF formats are the preferred standards for our production process.
Q2: Can products be customized without existing design drawings?
A2: Yes, we can develop the design based on a physical sample provided by the customer.
Q3: How do you ensure precise color matching?
A3: Customers should provide standard Pantone color numbers or physical color samples for accuracy.
Q4: What is the typical lead time for sample preparation?
A4: Samples are generally prepared and ready within 7 days.
Q5: Can these membrane switches be made waterproof?
A5: Yes, we utilize specialized waterproof materials and adhesives for applications requiring water resistance.
Q6: What is the estimated service life of the membrane switch?
A6: Our switches are tested to last 500,000 times as standard, with high-performance requirements reaching up to 1 million times.
