Low Weight High Accuracy Relay Test System
Low Weight High Accuracy Relay Test System
Low Weight High Accuracy Relay Test System
Low Weight High Accuracy Relay Test System
Low Weight High Accuracy Relay Test System
1 / 5
Low Weight High Accuracy Relay Test System
Low Weight High Accuracy Relay Test System
Low Weight High Accuracy Relay Test System
Low Weight High Accuracy Relay Test System
Low Weight High Accuracy Relay Test System

Low Weight High Accuracy Relay Test System

Customization: Available
After-sales Service: on-Line Techinical Support
Warranty: 3 Years
Send Inquiry

Product Description

📊Basic Info.
Model NO.
Relaystar -H60
Load Way
Electronic Load
Loading Method
Dynamic Load
Display
Digital
Control
Computer Control
Weight
14.8kg
Power Source
AC220V
Current Output
6 Phases Max32A Per Phase
Voltage Output
4 Phases Max 300V Per Phase
AC Accuracy
0.05%
Frequency
DC-1200Hz
Harmonic
2~20 Times
🛠️Product Description

Multi Application Portable High Accuracy 6-Phase Protection Relay Test System

Model: RELAYSTAR-H60

The RELAYSTAR-H60 is the portable 6-phase protection relay test system for testing most types of modern multi-function protection relays, which can output 6-phase current (6x0…32A) and 4-phase voltage (4x0…300V).

Relay Test System
Relay Test System
🌟Main Features
  • 🔹 3-phase current(3×40A) + 4-phase voltage(4×120V) output
  • 🔹 Both local test and PC remote test available
  • 🔹 Embedded system with 320×240 LCD screen
  • 🔹 High performance linear power amplifier
  • 🔹 8 binary inputs + 4 binary outputs
  • 🔹 Independent Aux. DC supply
📐Product Parameters
Parameter Type Specifications Range/Accuracy
Current Generator 6-phase AC (L-N) 6x0…32A; Accuracy: 0.05%
1-phase AC (LL-LN) 1x0…192A; Power: 750VA
Voltage Generator 4-phase AC (L-N) 4x0…300V; Accuracy: 0.05%
DC (L-N) 4x0…±300V; Power: 4x80VA
Binary Inputs 10 Inputs Threshold: 0-6V / 11V-250V
Frequency Range: 0~1200Hz Resolution: 0.001Hz
🏭Company Capabilities

Specialized in developing and manufacturing electrical power test and measurement instruments. Certified by ISO 9001:2015, ISO 14001:2015, and OHSAS 18001:2007. Equipped with professional production and testing instruments, including High-precision Meters and Insulation Test Systems.

Factory Testing
Production Equipment

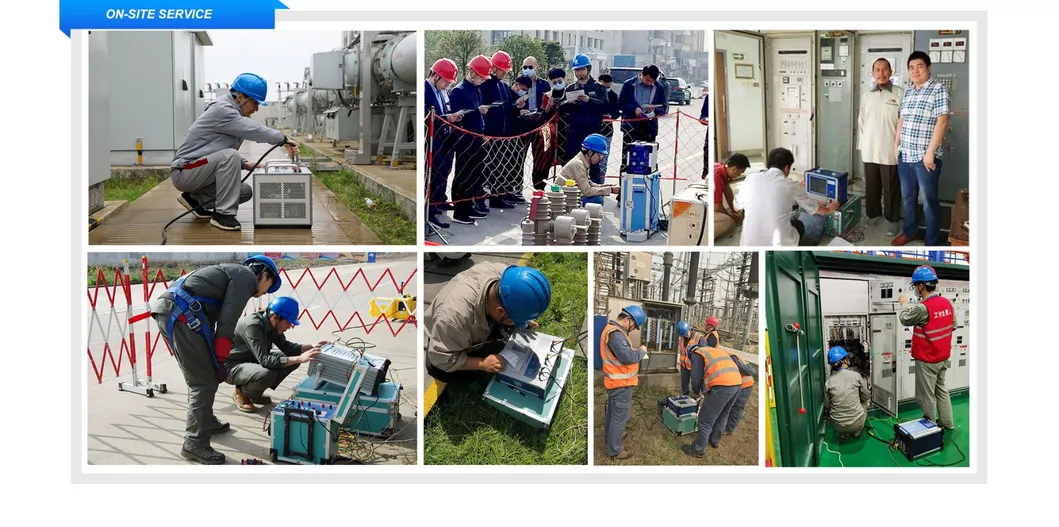

Quality Control
❓Frequently Asked Questions
How many current and voltage phases can the RELAYSTAR-H60 output?
The system can concurrently output 6-phase current (up to 32A per phase) and 4-phase voltage (up to 300V per phase).
Does the system support local and remote testing?
Yes, it supports both local operation via the embedded system and LCD screen, as well as remote PC control.
What is the accuracy of the AC output?
The AC current and voltage output accuracy is highly precise, reaching ≤0.05% within typical operating ranges.
What is the weight and portability of the unit?
The RELAYSTAR-H60 is designed for portability, weighing approximately 14.8kg (32.63 lb) without the handle.
What safety and EMC standards does this equipment comply with?
The product adheres to Directive 2004/108/EC (CE conform), including standards like IEC 61326-1 and IEC 61010-1 for safety.
Can it perform harmonic testing?
Yes, the system supports harmonic superposition from the 2nd to the 20th order.
