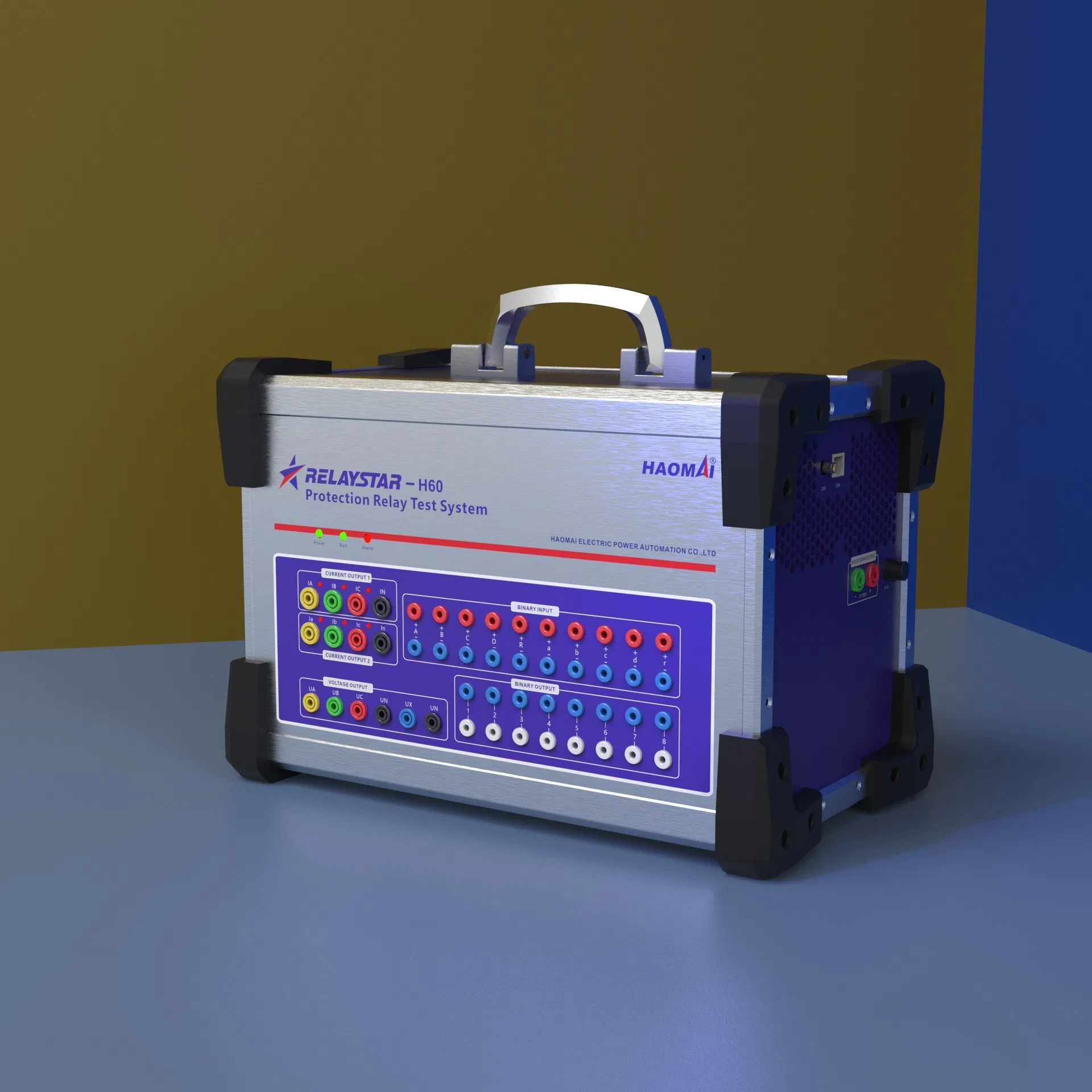

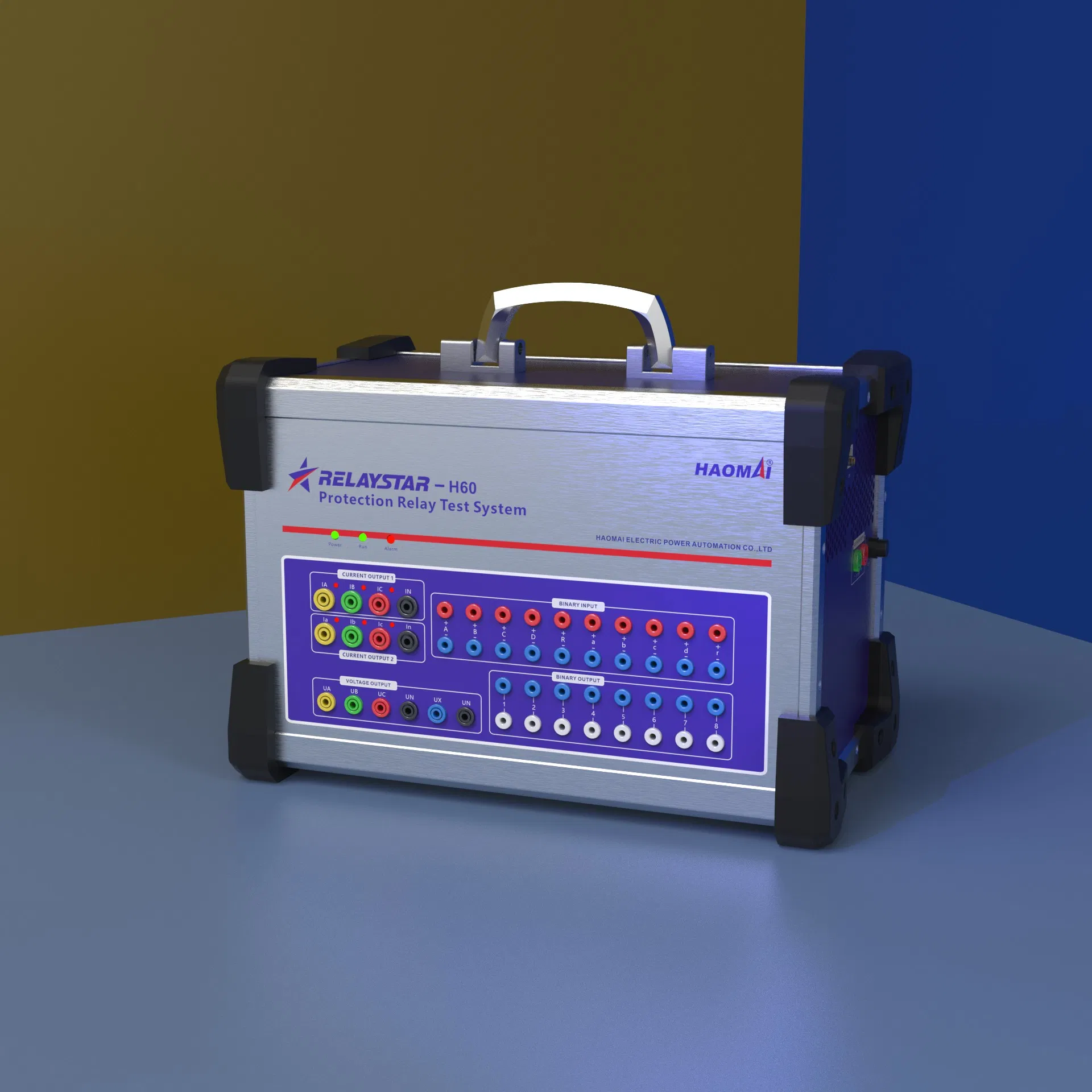

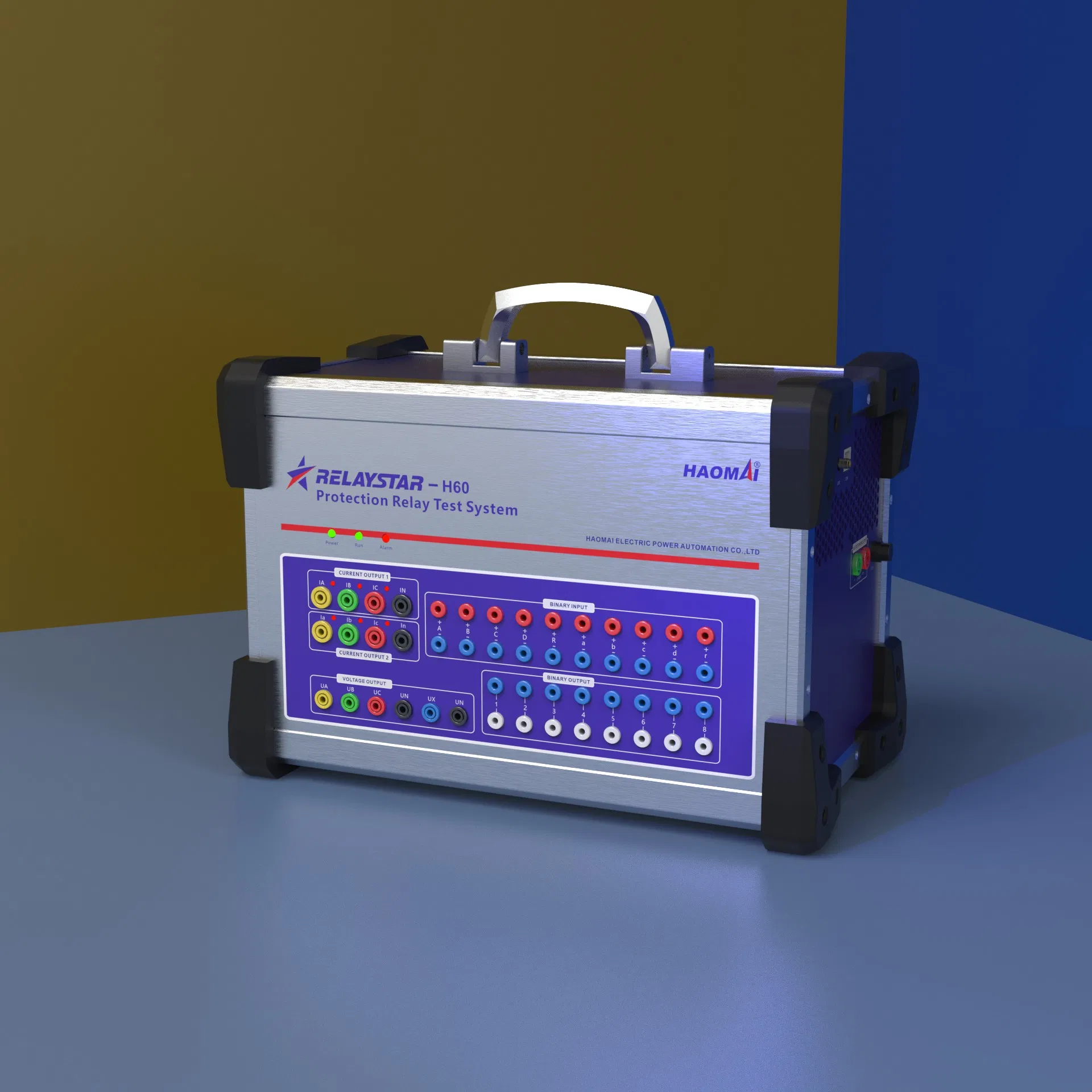

Multi Application Portable High Accuracy 6-Phase Protection Relay Test System
Model: RELAYSTAR-H60

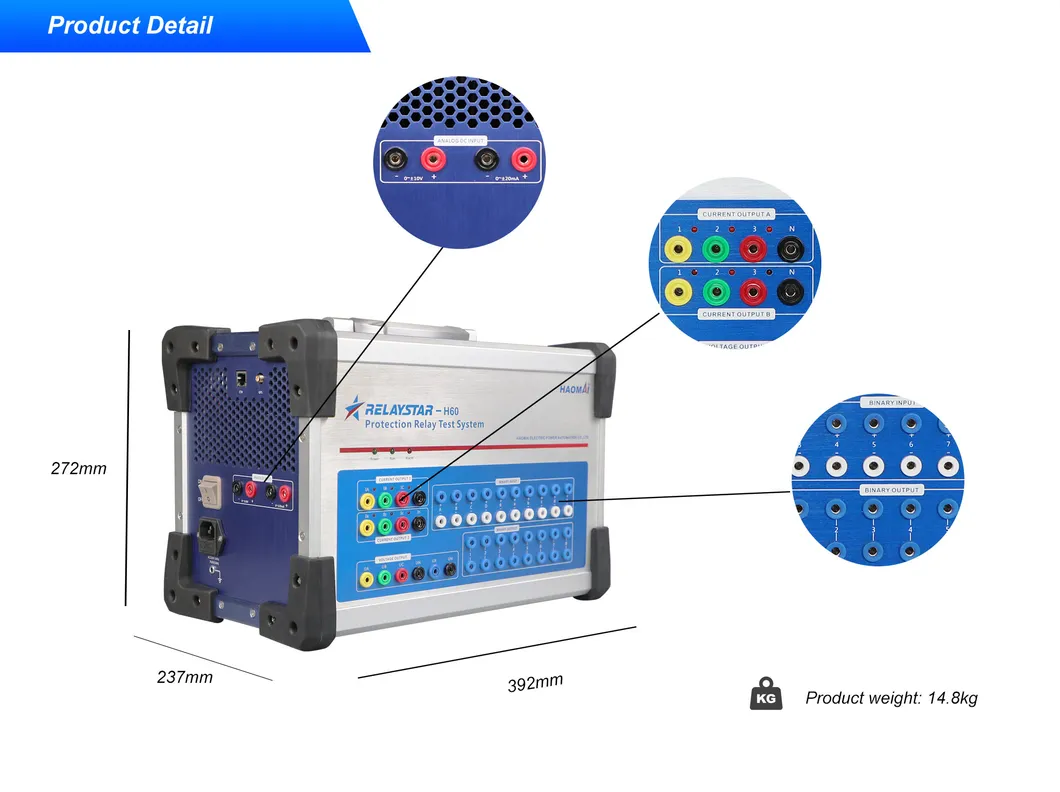

The RELAYSTAR-H60 is a portable 6-phase protection relay test system designed for testing most types of modern multi-function protection relays. It features an output capacity of 6-phase current (6x0…32A) and 4-phase voltage (4x0…300V).

Main Features

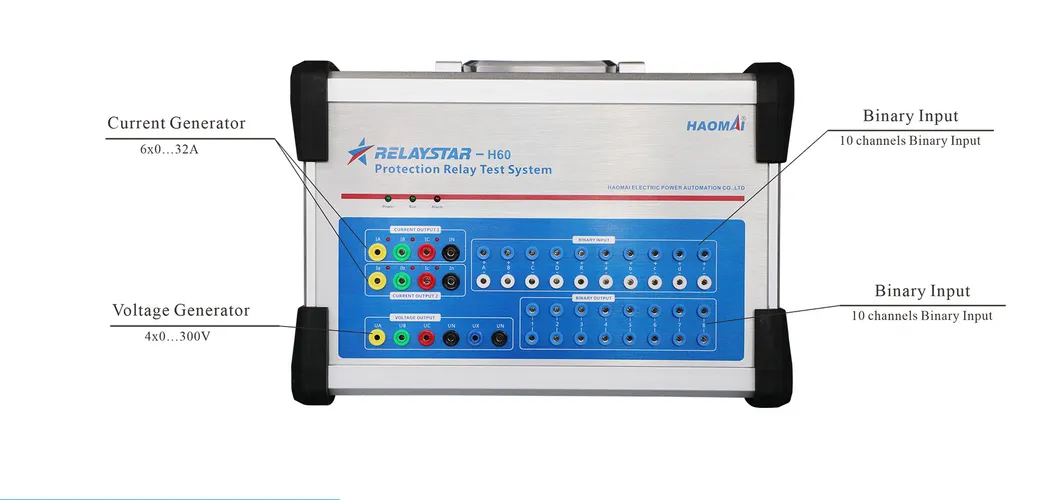

✅ 3-phase current(3×40A) + 4-phase voltage(4×120V) output
✅ Both local test and PC remote test available
✅ Embedded system with 320x240 LCD screen
✅ High performance linear power amplifier
✅ 8 binary inputs + 4 binary outputs
✅ Independent Aux. DC and powerful software testing function

Product Parameters

Generator Type	Parameter	Setting Range / Value
Current Generator	6-phase AC(L-N)	6x0…32A / 240VA
	3-phase AC(L-N)	3x0…64A / 400VA
	1-phase AC	1x0…192A / 750VA
	Accuracy	AC: ±0.05% (0.5~32A)
Voltage Generator	4-phase AC(L-N)	4x0…300V / 80VA
	1-phase AC(L-L)	1x0…600V / 160VA
	Accuracy	AC: ±0.05% (5~300V)
Frequency	Range	0 ~ 1200Hz
Phase	Range	-360° ~ +360°

Safety & Standards

The system adheres to the Electromagnetic Compatibility (EMC) Directive 2004/108/EC and the Low Voltage Directive 2006/95/EC. Compliance includes IEC 61326-1, IEC 61000, and IEC 61010-1 standards.

Manufacturing Excellence

Utilizing high-precision instruments such as Agilent 34401A 6 1/2 Meters and EMH Standard Meters, our production facility ensures standardized processes certified by ISO 9001:2015, ISO 14001:2015, and OHSAS 18001:2007.

Frequently Asked Questions (FAQ)

Q1: Can the RELAYSTAR-H60 be operated without a PC?

A1: Yes, it supports both local test (via embedded system and LCD) and PC remote test functionality.

Q2: What is the current output accuracy?

A2: The AC current output accuracy is ≤0.05% within the range of 0.5A to 32A.

Q3: Does the system support harmonic testing?

A3: Yes, it supports harmonic superposition from the 2nd to the 20th order.

Q4: Is the system portable for field work?

A4: Yes, it is designed for portability with a weight of 14.8kg (32.63 lb) and compact dimensions.

Q5: What safety standards does the device comply with?

A5: It adheres to CE directives for EMC and Low Voltage, specifically following IEC 61010-1 and IEC 61326-1 standards.

Q6: What are the input and output binary configurations?

A6: It is equipped with 8 or 10 binary inputs (depending on config) and 8 binary outputs for comprehensive protection logic testing.
