Non-destruction testing (NDT) analysis for Li-ion battery, composite materials, additive manufacturing, and scientific research.
✔ Key Features:
► Type by Structure

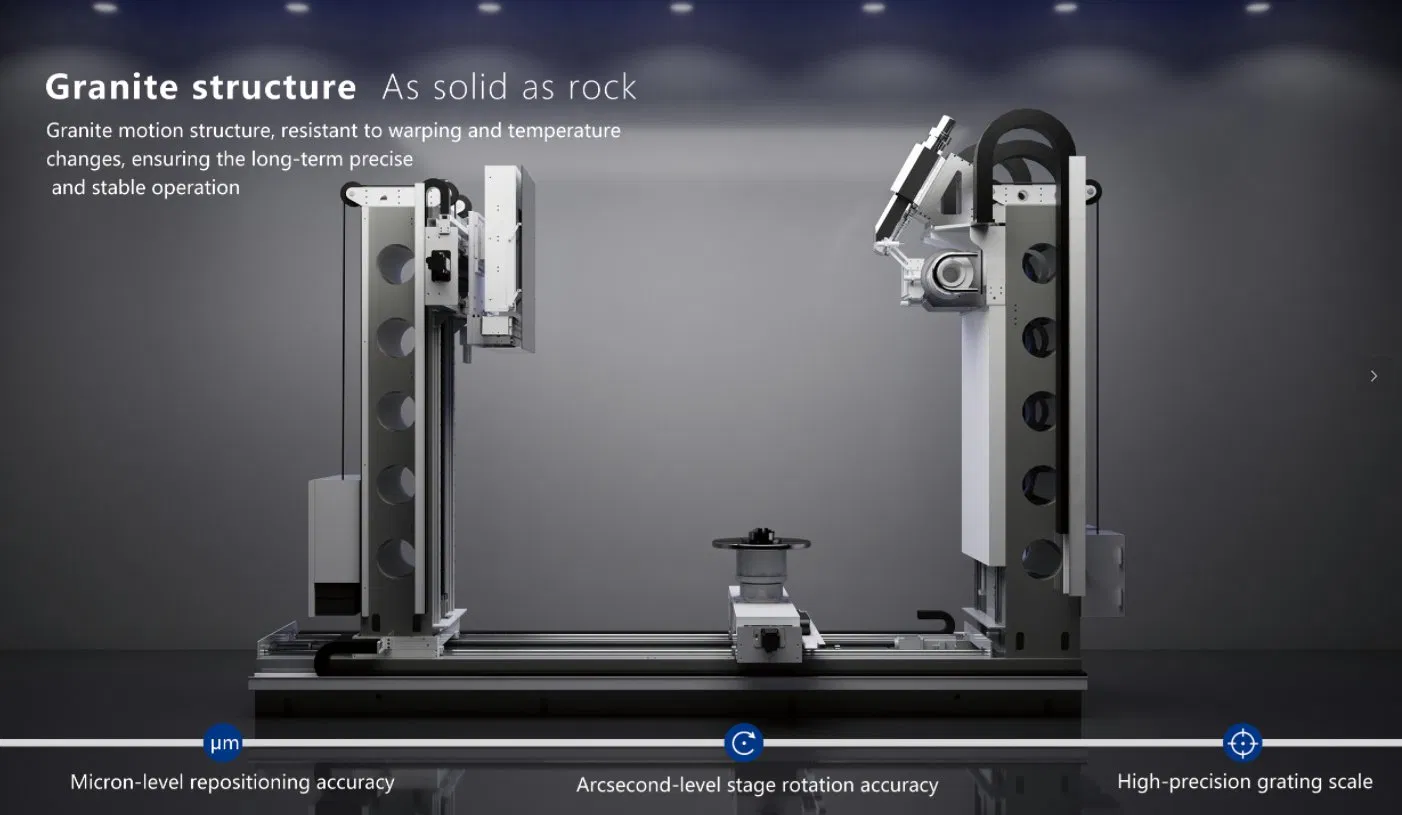

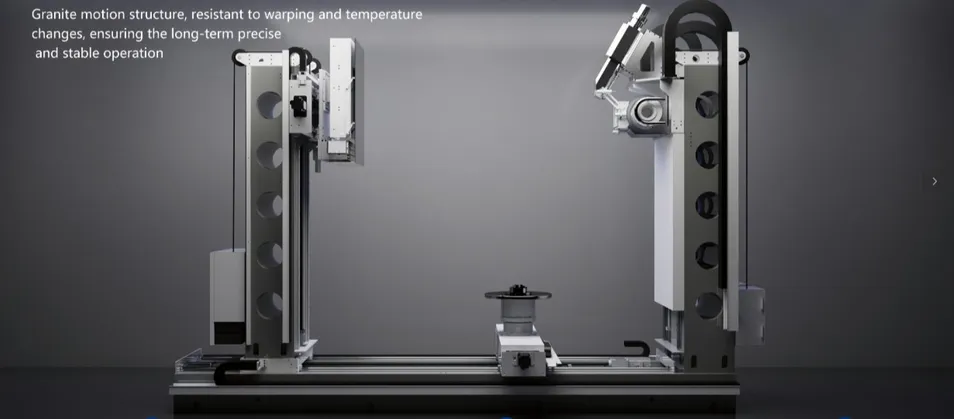

Single-source-single-detector D1000

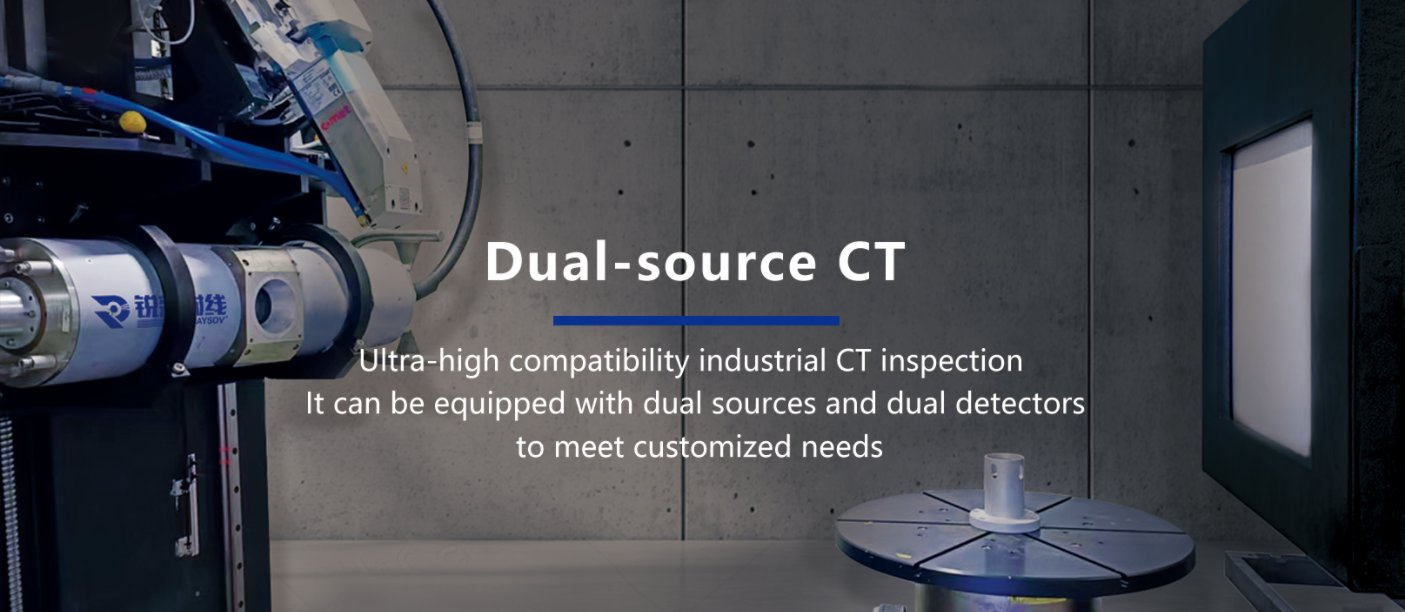

Dual-source-single-detector D2000
Dual-source-dual-detector D3000
► Type by Focus
Nano CT (sub-microfocus)
Micro CT (microfocus)
Standard CT (small focus)
High-energy LINAC CT
► Type by Application

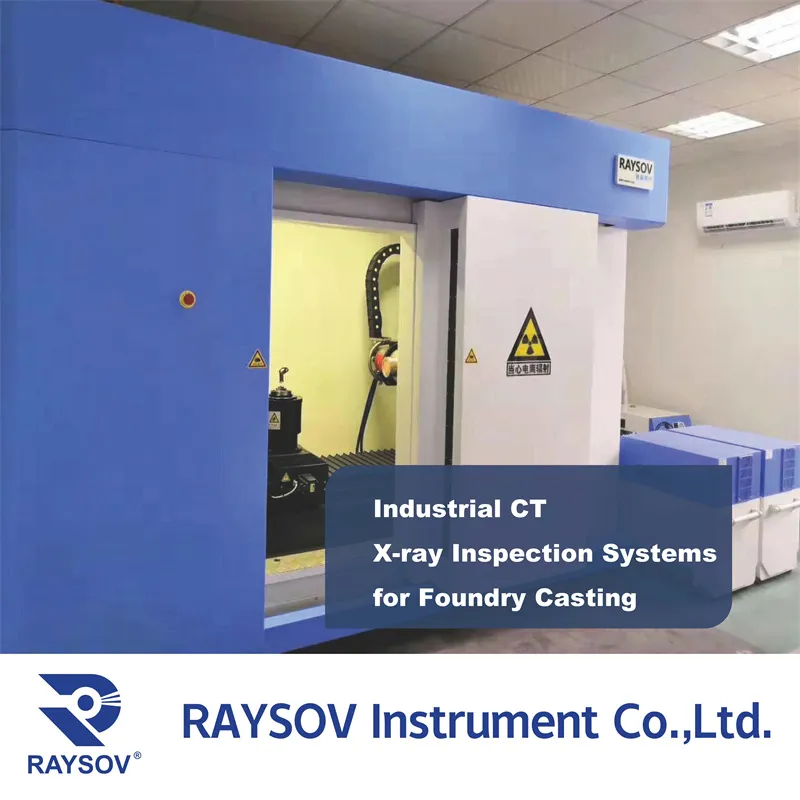

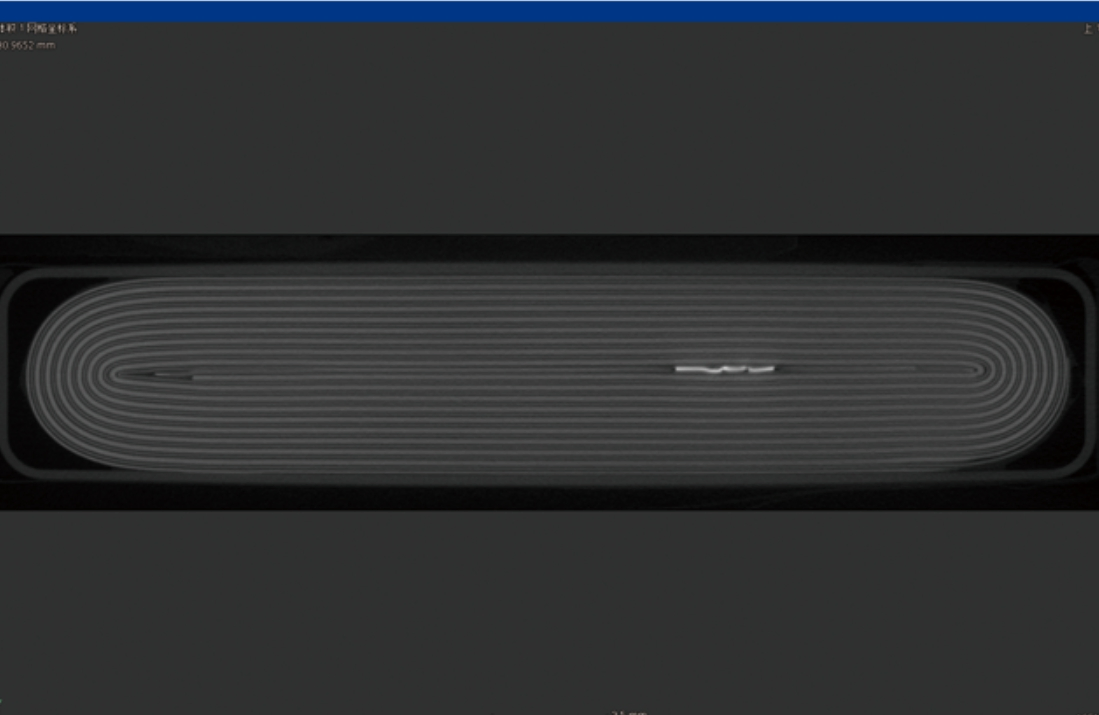

Li-ion batteries CT / Turbine blades CT / Cylinders CT / Additive manufacturing CT / Precision casting CT
| Technical Parameters | ZXVoxel U | ZXVoxel A | ZXVoxel C | ZXVoxel D-IN |
|---|---|---|---|---|
| Scan Range (mm) | D=100 H=100 | D=250 H=200 | D=250 H=250 | D=330 H=330 |
| Max. Object (mm) | D=200 H=200 | D=400 H=500 | D=500 H=500 | D=550 H=700 |
| X-ray Source | 100kV 5μm | 160/225kV 0.4μm | 160/225/300kV 3μm | 160/225/450kV 0.4mm |
| Max. Weight (kg) | 10kg | 50kg | 50kg | 50kg |

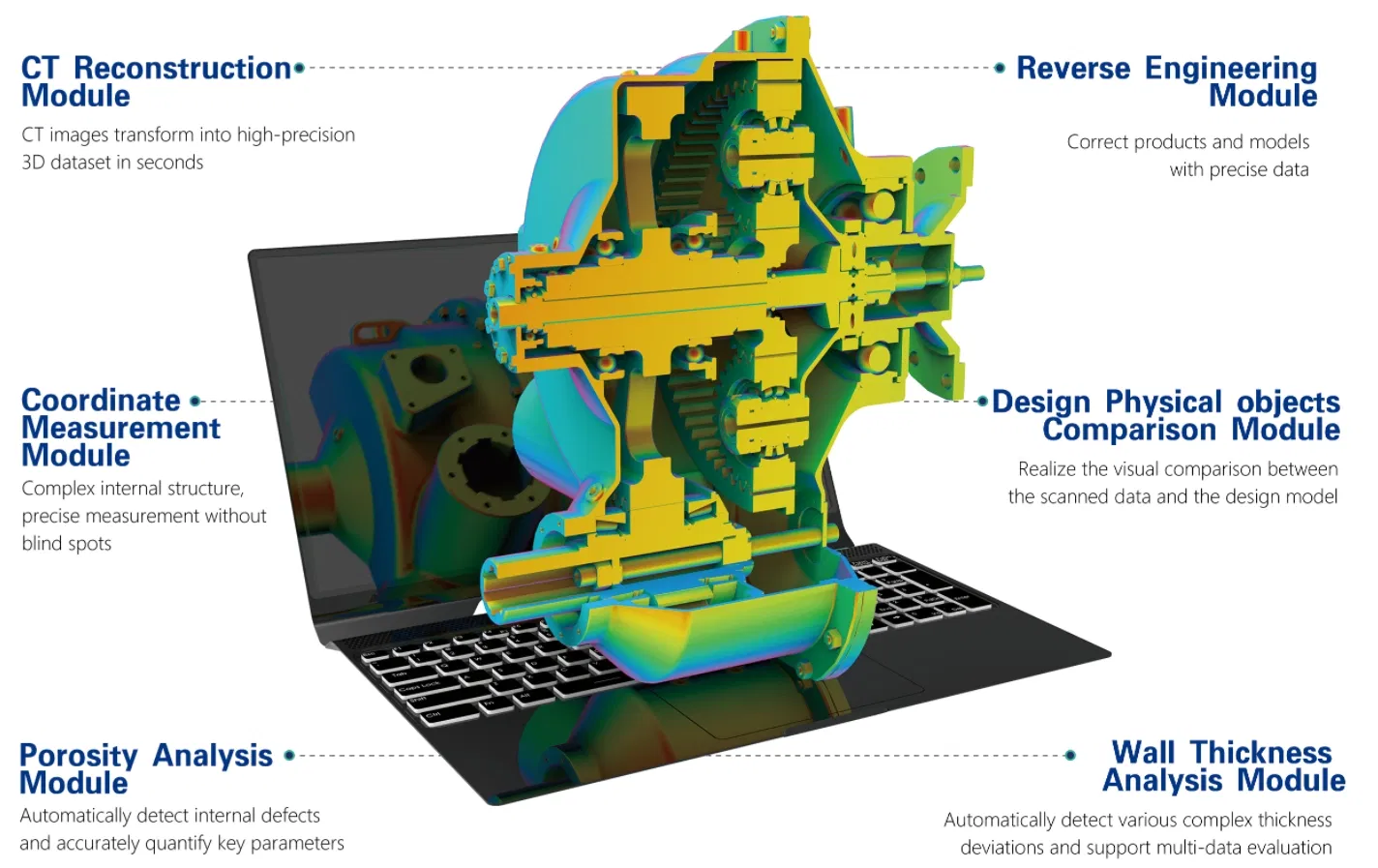

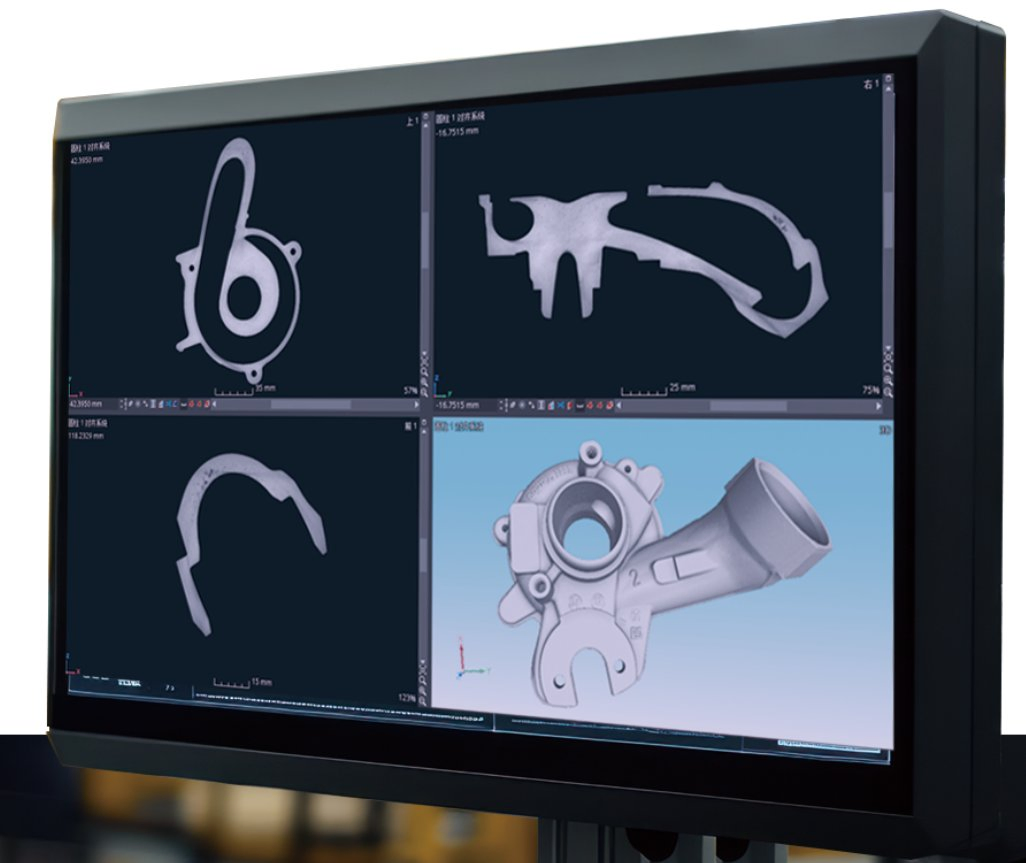

3D Reconstruction and Analysis Software: Powerful data processing capabilities and precise analysis functions including 3D coordinate measurement, pore/inclusion analysis, wall thickness analysis, and structural mechanics simulation.
