Digital Trolley Diagnostic Scanner Ultrasound System

1 / 5

Digital Trolley Diagnostic Scanner Ultrasound System

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

YJ-U100T

Certification

CE, FDA, ISO13485

LCD Screen

15 Inches

Name

Trolley Ultrasound Scanner

Gray Scale

256

Probe Connector

Origin

China

Production Capacity

1000 Sets/Year

Product Description

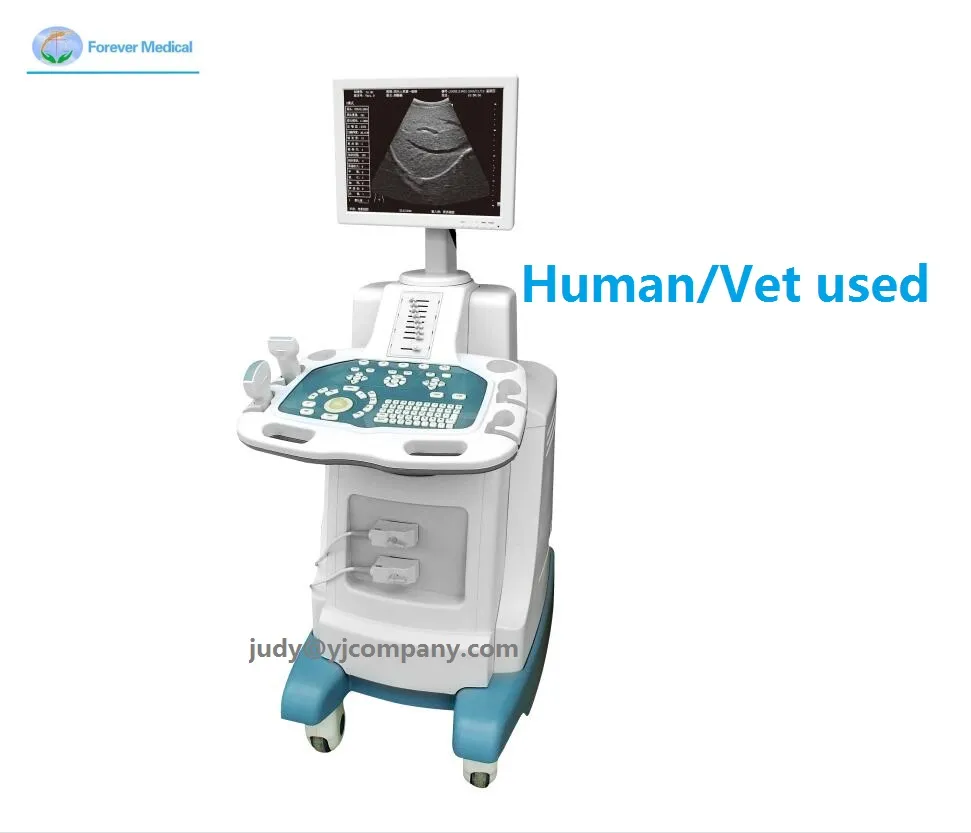

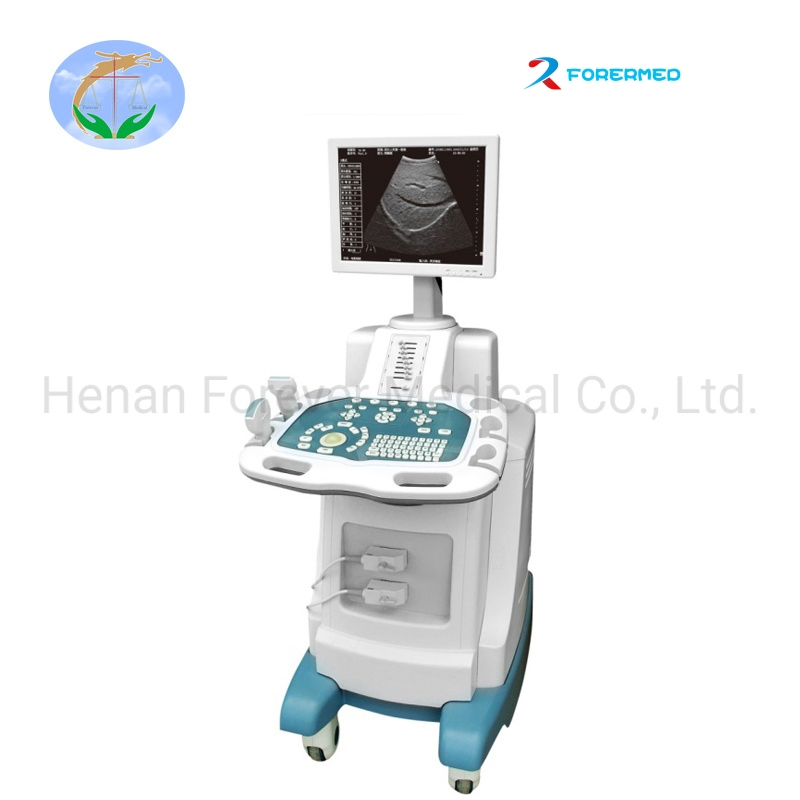

Digital Trolley Ultrasound Scanner YJ-U100T

💡 Introduction:

This product is suitable for the diagnosis of the soft tissue of the human dynamic graphics, such as the liver, gallbladder, kidney, spleen, pancreas, uterus, bladder, fetal, and family planning to check pregnant, check ring, obstetrics and gynecology.

✅ Main Features:

Powerful measurement & calculation software packages
8-Segment TGC adjustment
15 inches LCD screen
OB measurements: BPD, GS, CRL, FL, AC, HC, etc
Permanent function of image store: 32 images

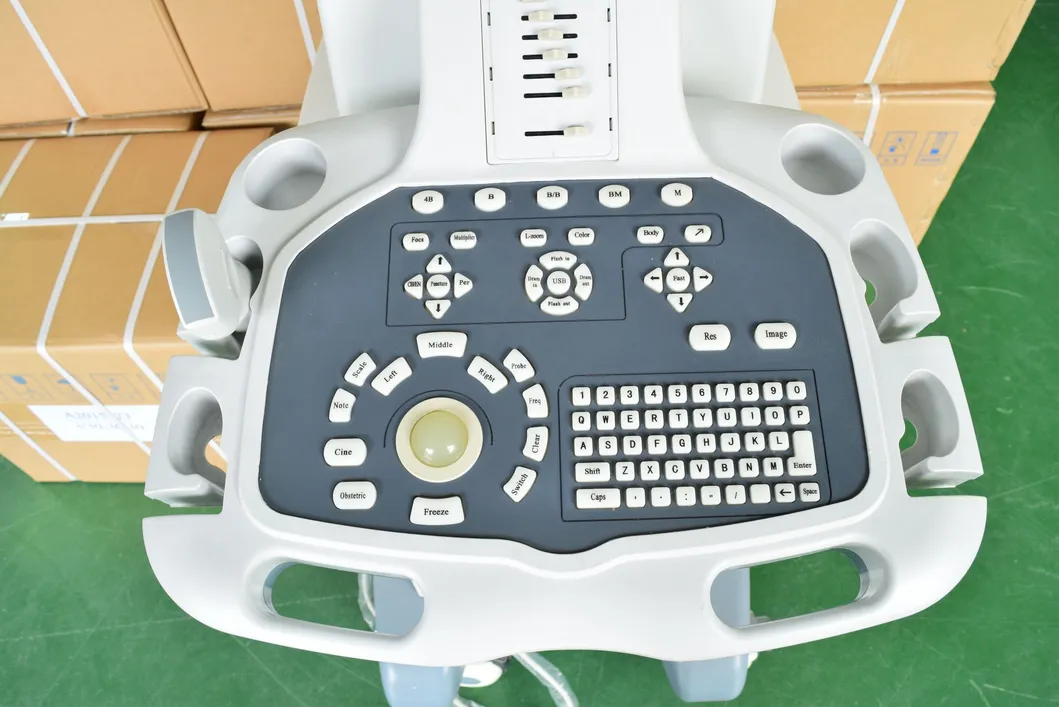

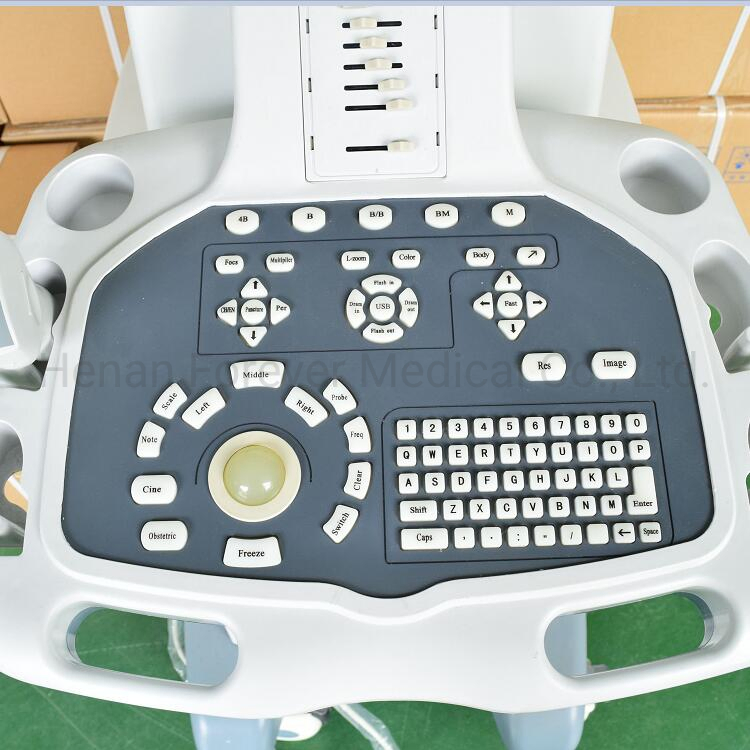

Back-lit keyboard
2 probe connectors
Probe automatic identification

Technical Specifications

Scanning mode: Convex/Linear/Trans-vaginal/Trans-rectal;
Display modes: B, B+B, B+M, M, 4B;
Scanning depth: 240mm;
Gray scales: 256;
Body marks: 33;
Image conversion: up/down, left/right, black/white;
Vertical resolution: <=1mm; Lateral resolution: <=1mm;

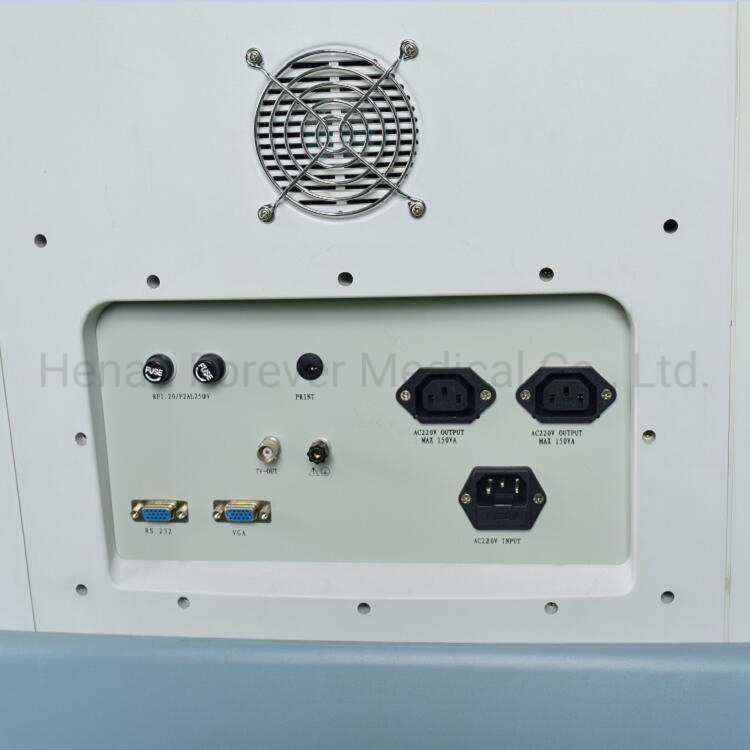

Port: USB 2.0, VGA, Video connector;
Power supply: AC 110V-240V, 50HZ/60HZ;

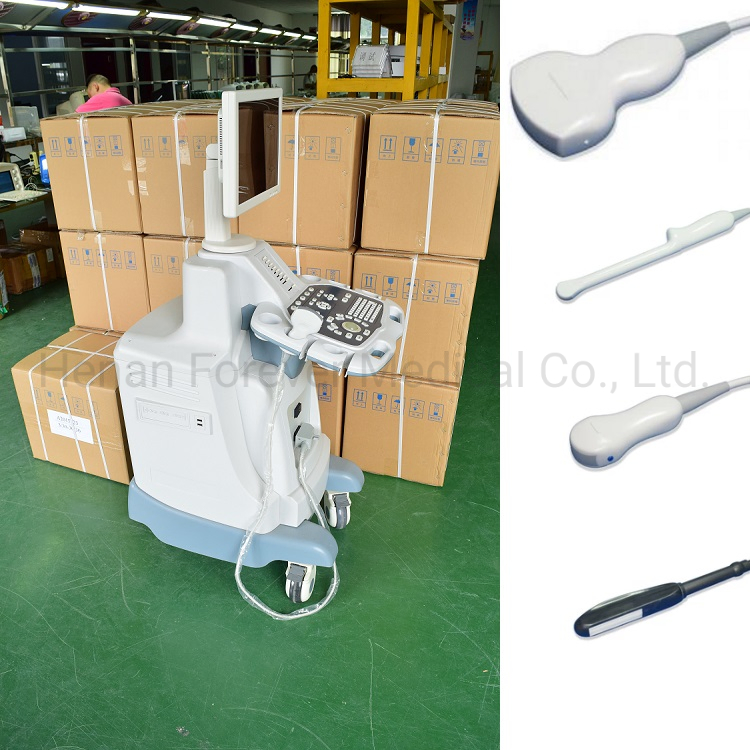

Standard Configuration	Main unit 1 set, 60R/3.5MHZ Multi-frequency Convex array probe, Power line, Ground line, Fuse, User's manual, Packing list, Warranty card.
Options	Linear array probe, Micro-Convex array probe, Trans-vaginal array probe, Trans-rectal probe, Video printer.

Product Gallery

Frequently Asked Questions

Q: What is the screen size of the YJ-U100T ultrasound scanner? A: It features a high-resolution 15-inch LCD screen for clear diagnostic viewing.

Q: What imaging modes are supported? A: The system supports B, B+B, B+M, M, and 4B display modes.

Q: Can I connect a printer to this ultrasound system? A: Yes, it has built-in video output and a USB 2.0 port, allowing you to connect laser or video printers directly.

Q: What are the primary clinical applications? A: It is widely used for abdomen, OB/GYN, urology, cardiology, and small parts examinations.

Q: How many probe connectors does the device have? A: The unit comes equipped with two probe connectors and supports automatic probe identification.

Q: Does the system have image storage capabilities? A: Yes, it has a cine-memory and can store more than sixteen thousand images via the USB function.
