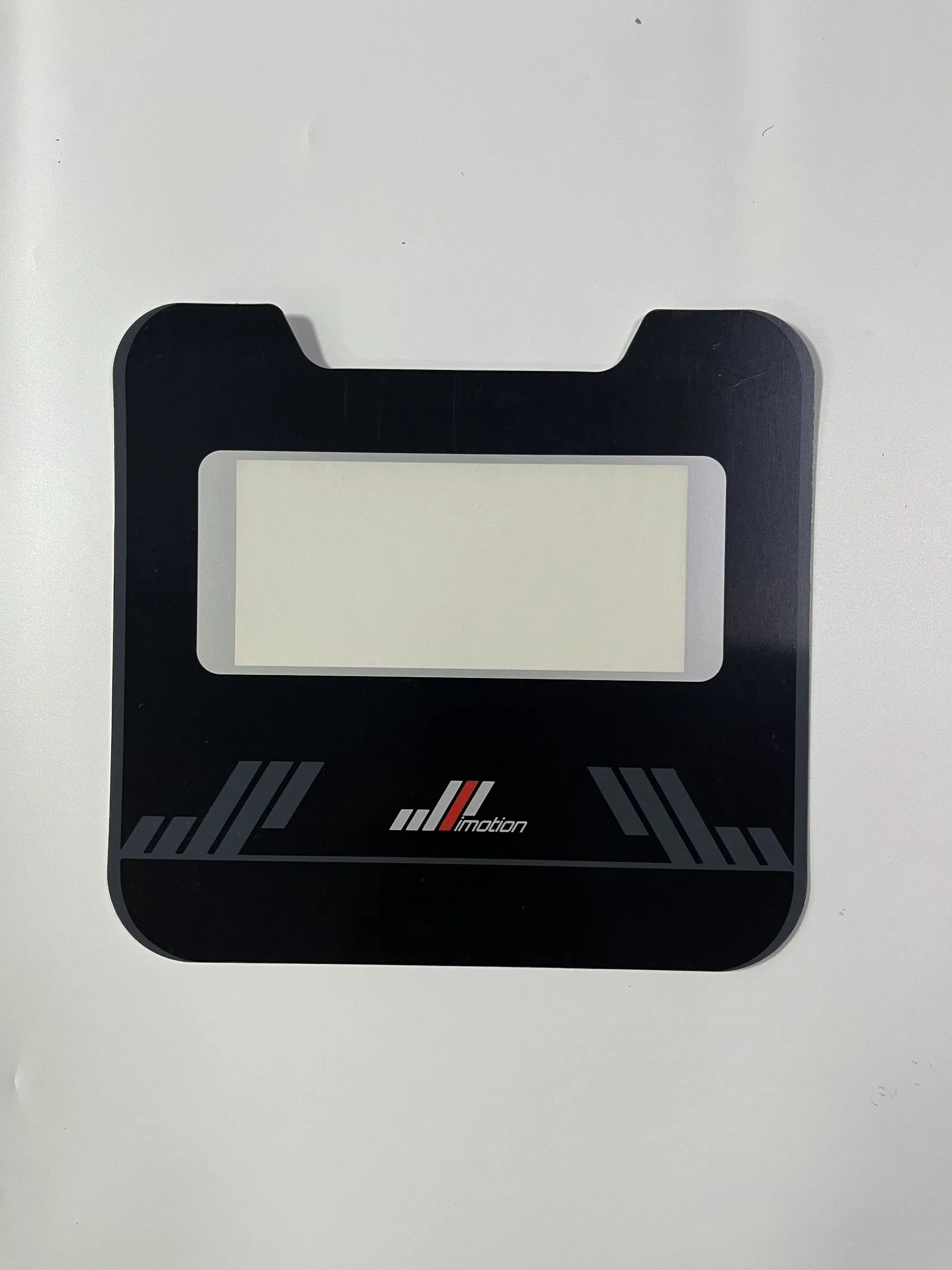

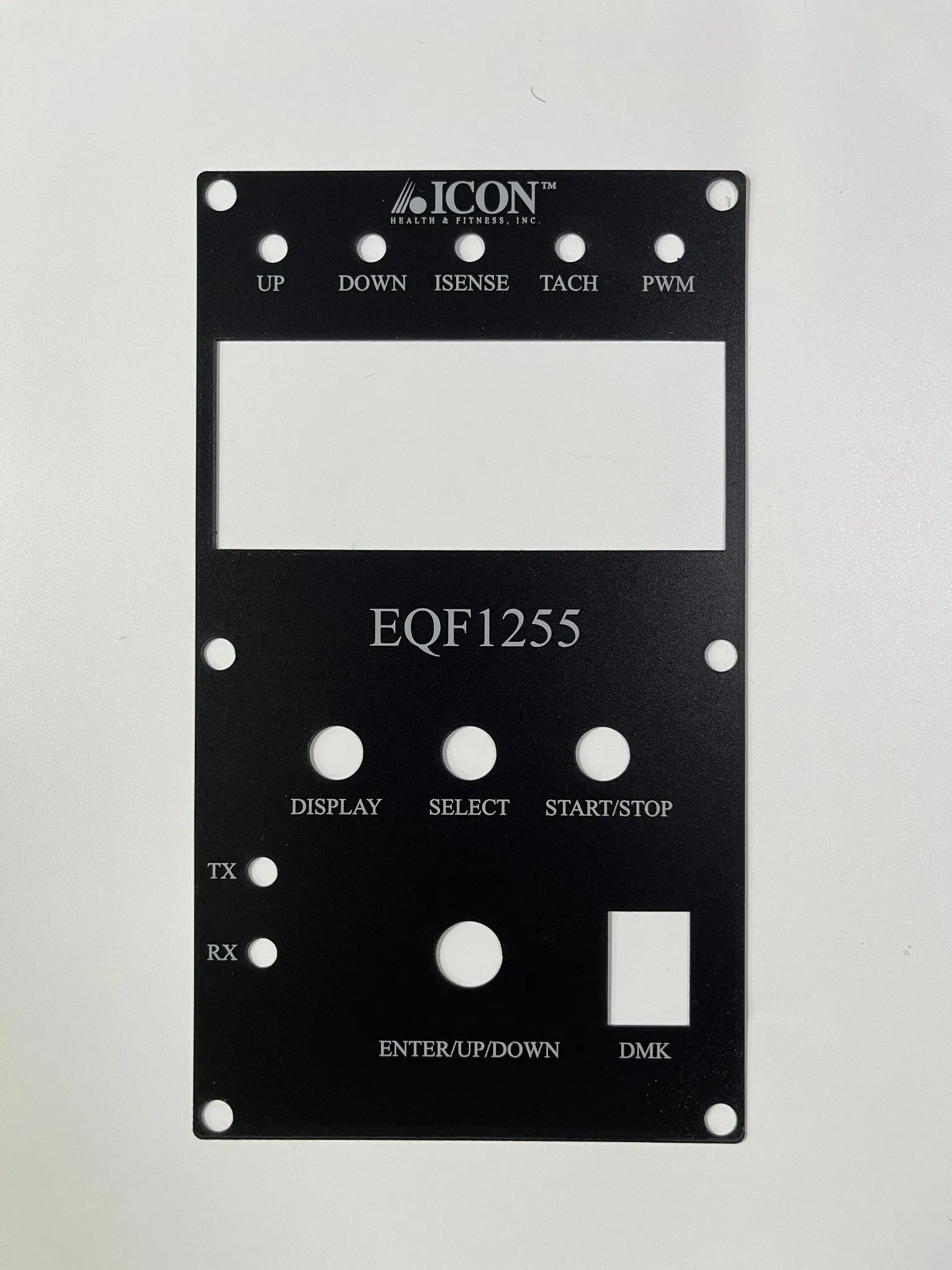

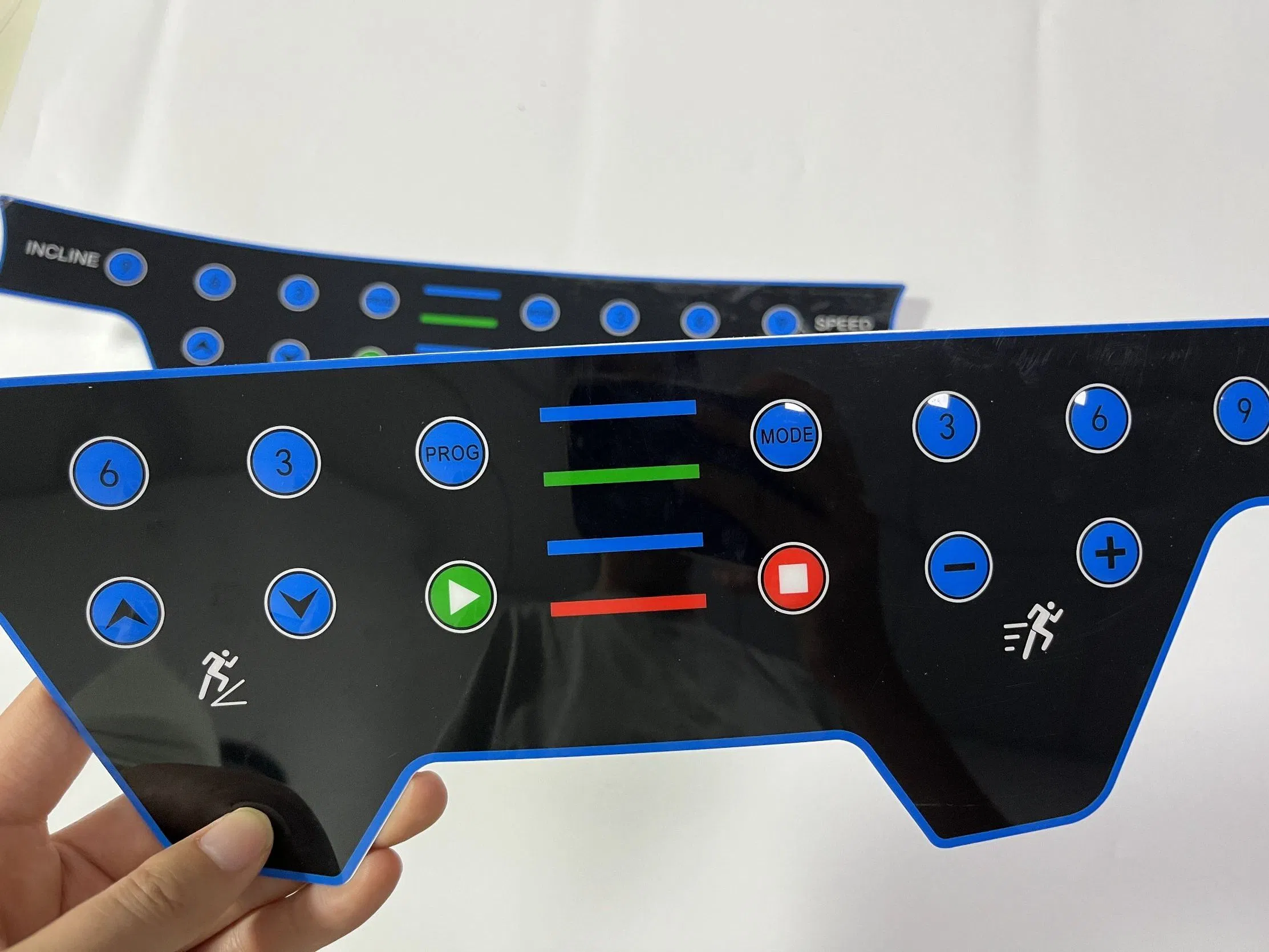

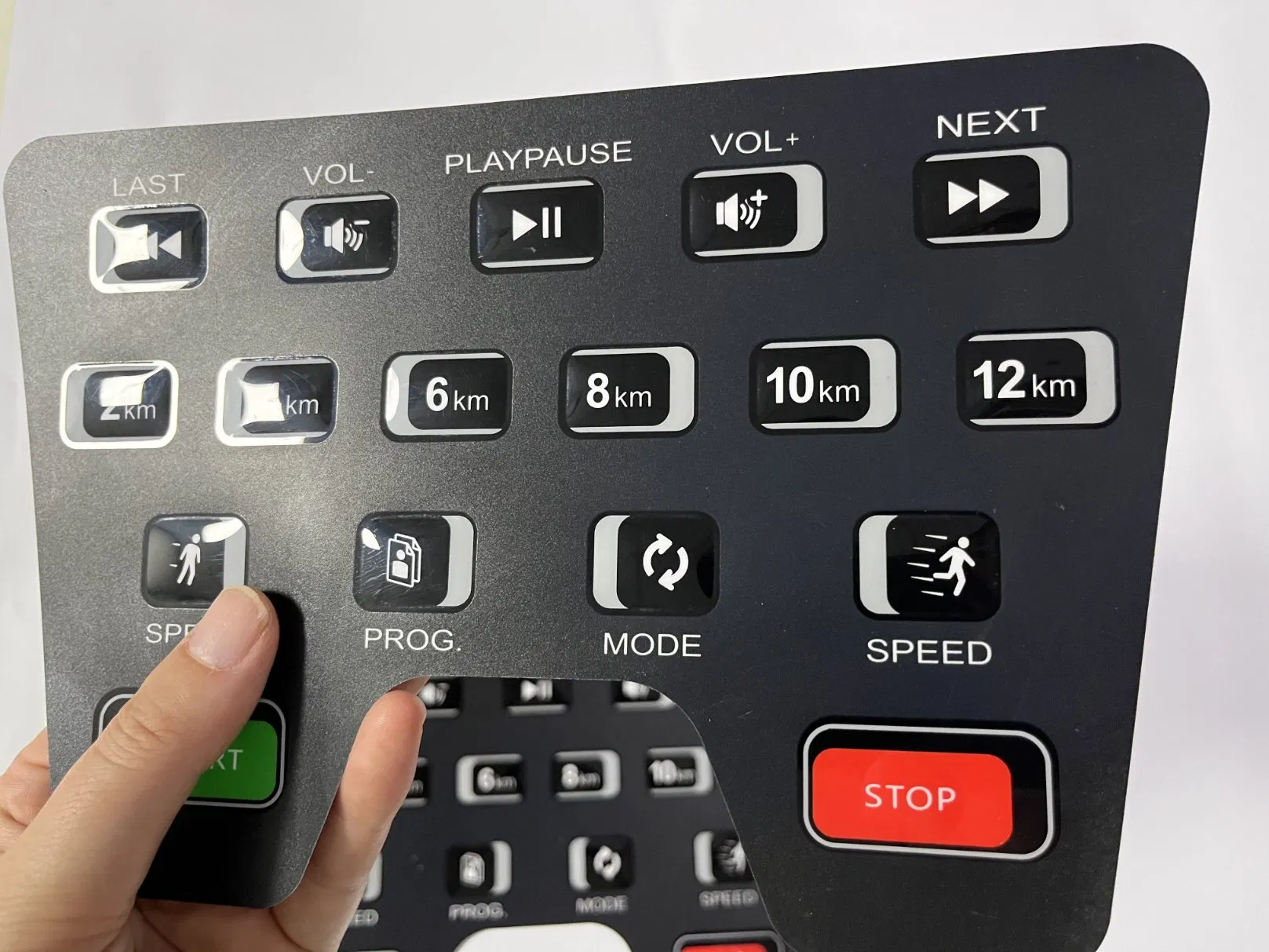

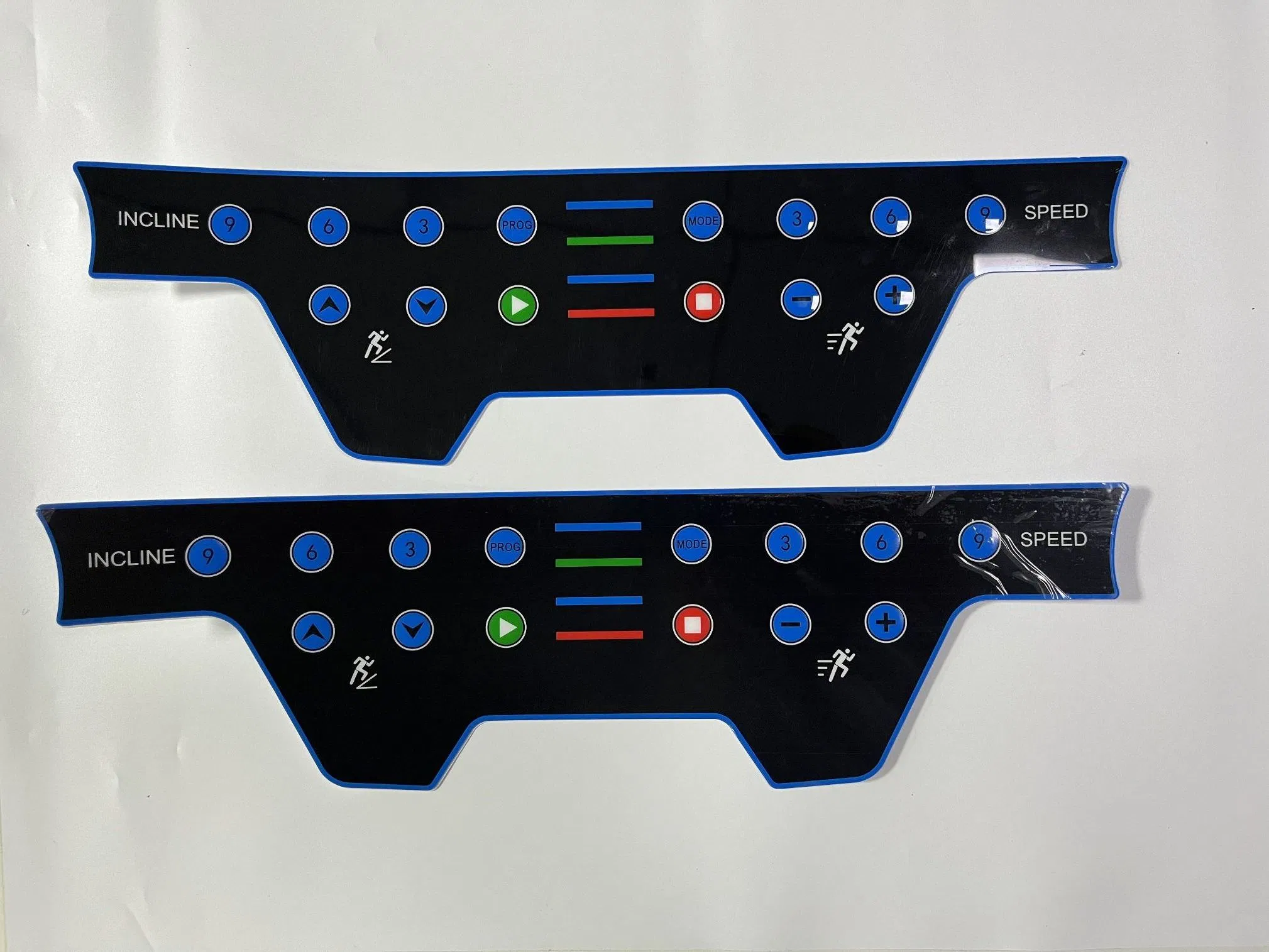

Custom Waterproof Graphic Overlay Silk Screen Printing Electric Circuit Control Membrane Panel

Customization: Available
Type: Flat
Structure: Power Built-in Type

Product Description

Basic Product Information
Model NO.
MC-1126-02
Usage
Change-over Switch, Control Switch
Application
Smart Home Appliance, Washing Machine, Treadmill
Contact Type
Hard
Number of Switch
Custom According to The Circuit Drawing
Detection Method
Light Transmission Detection and Hardness Measurement
Certification
ISO9001, CE
Layer
4 to 9 Layers
Surface
Glossy / Matte Finish
Function
Waterproof, Dustproof, UV Resistant
Thickness
Plate: 0.25-10.0mm
Temperature Resistance
-30 °c - +80 °c
Key Specifications & Features

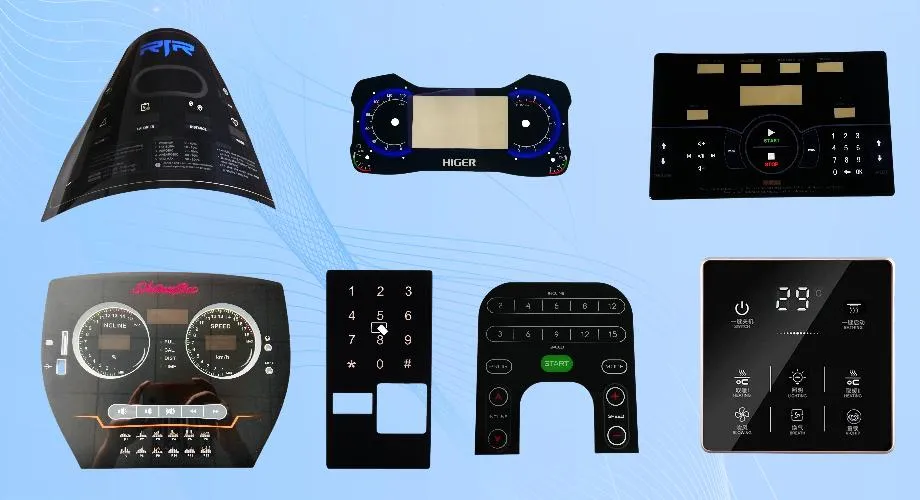

Membrane Panel Control

Specialized in customizing and producing all kinds of membrane switches, membrane keyboards, and touch control panels. We customize according to design requirements with our own lab and R&D support.

Base MaterialPMMA (acrylic)/PET/PVC/PC
ColorPantone and RAL color matching system
Window SurfaceDie cutting, clear, or colored windows
Adhesive3M467/468MP/200MP/9080AMP
Dimension & ThicknessPrecise die cutting as per request
Back lightDead front graphics for special effects
Surface CurvatureFlat or cambered

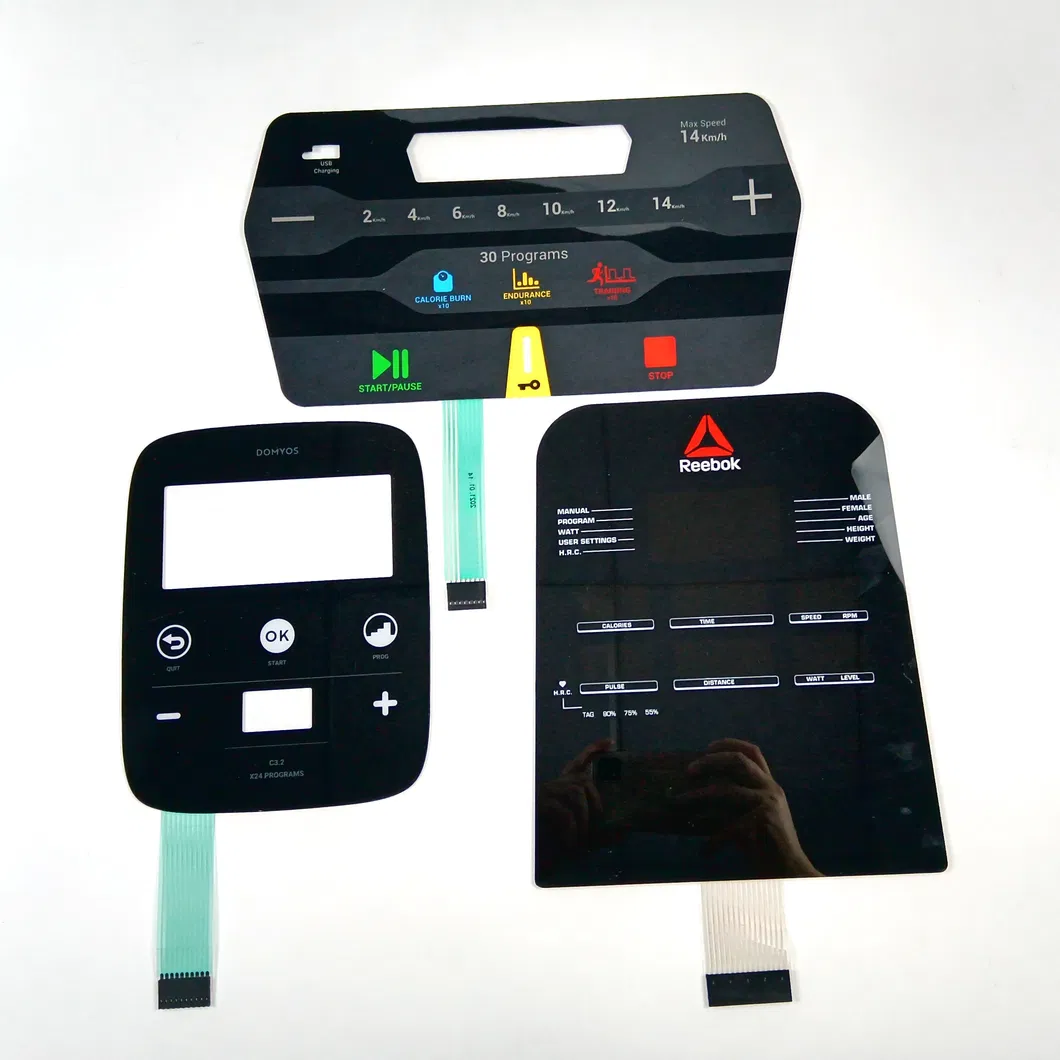

Graphic Overlay Details
Product Applications

Our products are widely used in multiple high-tech and industrial sectors:

  • Medical equipment & Robotics
  • Telecommunication equipment & Computers
  • Industrial control panels & HMI (Human Machine Interface)
  • Touchscreen interface and protection
  • Automotive vehicle controls & Machinery
  • Smart Household Appliances & Fitness Equipment
Application Scenarios
Manufacturing Excellence

Founded in 2011, we are a research and development, production, and sales integrated high-tech enterprise. With 2500 square meters of production space, we specialize in membrane panels, capacitive touch panels, flexible circuits, and industrial nameplates.

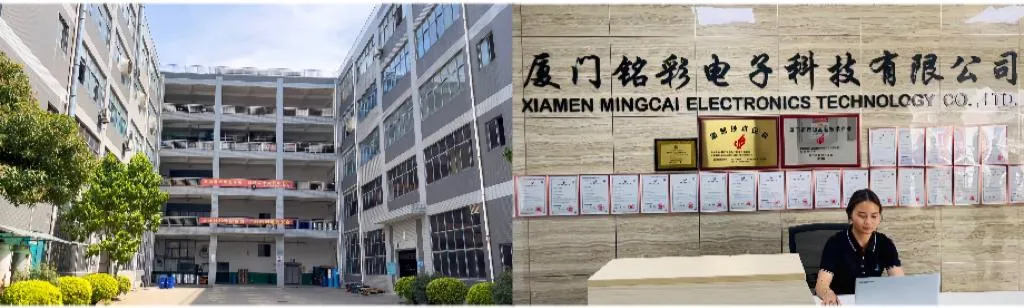

Production Workshop Quality Control Automation Equipment

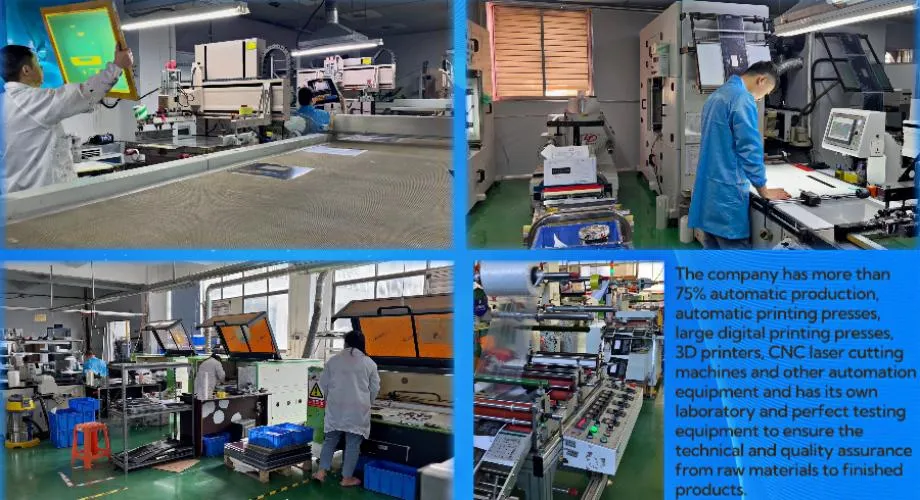

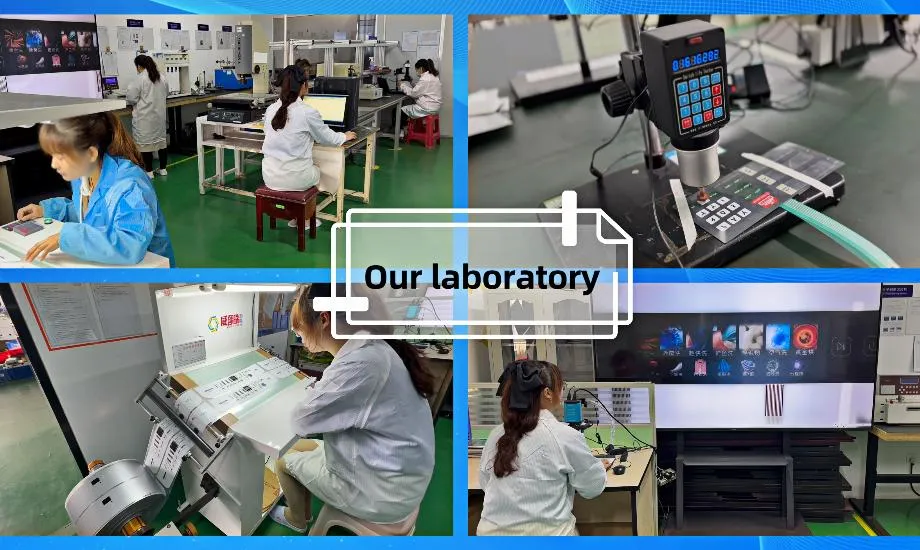

Over 75% of our production is automated, utilizing automatic printing presses, large digital printing presses, 3D printers, and CNC laser cutting machines. Our laboratory ensures strict quality control from raw materials to finished products.

Equipment Display 1 Equipment Display 2 Equipment Display 3
Technical Team R&D Support
Frequently Asked Questions
Q1. Are all products customized? Yes, all products are customized according to specific customer requirements and drawings.
Q2. What information is needed for customization? Customers need to provide a design drawing (AI, PDF, or 3D formats) or a physical sample.
Q3. Is the sample free? Current similar samples are free (customer bears shipping). For custom designs, a tooling and sample fee is required.
Q4. Is there a minimum order quantity (MOQ)? No, we accept small quantities. However, larger quantities allow for more cost-effective automated production.
Q5. How long does sample delivery take? Usually within 7 days after all design information has been confirmed.
Q6. What are the payment terms? 50% in advance before production, with the balance paid before delivery via TT or Paypal.
