Advanced Primary Current Injection Test System for Temperature Rise
Advanced Primary Current Injection Test System for Temperature Rise
Advanced Primary Current Injection Test System for Temperature Rise
Advanced Primary Current Injection Test System for Temperature Rise
Advanced Primary Current Injection Test System for Temperature Rise
1 / 5
Advanced Primary Current Injection Test System for Temperature Rise
Advanced Primary Current Injection Test System for Temperature Rise
Advanced Primary Current Injection Test System for Temperature Rise
Advanced Primary Current Injection Test System for Temperature Rise
Advanced Primary Current Injection Test System for Temperature Rise

Advanced Primary Current Injection Test System for Temperature Rise

Customization: Available
After-sales Service: Engineer Is Available for Oversea Service
Warranty: 365 Days
Send Inquiry

Product Description

📊 Overview & Basic Info
Model NO.
SLQ
Description
Short Time Running Temperature Rise Test System
Functions
Generate High Current for Electrical Debugging
Application Field
Electrical Industry
Test Objects
Transformer, Circuit Breaker, etc.
Opening Voltage
6V or as Requested
Output Current
1ka to 10ka, Can Be Customized
Control Mode
Manual
Production Capacity
100 Sets / Month
Package Size
55.00cm * 50.00cm * 100.00cm
📝 Product Description

The SLQ Primary Current Injection Test Set is an essential equipment used for electrical debugging to generate high current. It is widely applied in power plants, distribution stations, electrical manufacturing, scientific research laboratories, and other industrial units.

This system is designed for short-term or intermittent operation, characterized by its portable size, light weight, superior performance, and ease of maintenance.

⚙️ Product Parameters
Model Capacity (KVA) Junior Range Secondary Range Dimensions (mm) L×W×H Weight (kg) Structure
V1 A1 V2 A2
SLQ-3/5003220156500430×338×55045Integrated
SLQ-6/100062202761000500×380×60065Integrated
SLQ-12/20001238031.662000580×400×750105Integrated
SLQ-24/4000243806364000640×450×820180Separated
SLQ-60/1000060380158610000800×600×1100200Separated

Note: Capacity and maximum current output can be customized according to specific customer requirements.

✨ Key Features
  • Dual ammeters to supervise different measurement ranges simultaneously.
  • Equipped with indicator lighting and intuitive buttons for easy operation.
  • Available in both integrated and dividable structures for enhanced mobility.
  • Optimized for a 5-minute short-term work system with efficient cooling intervals.

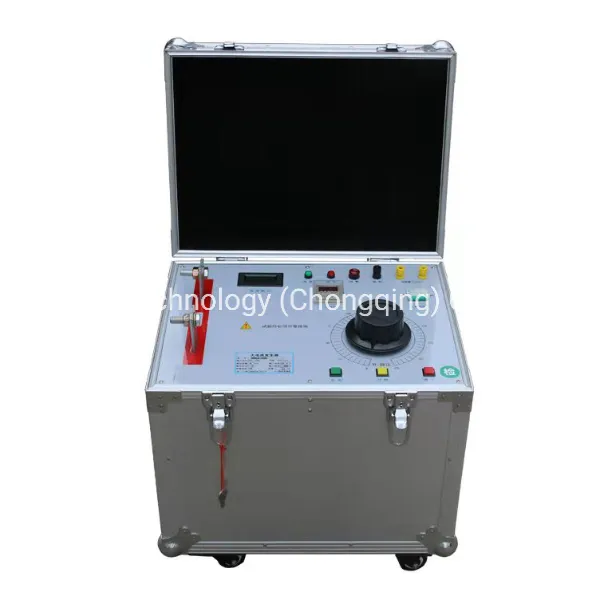

Box Type SLQ

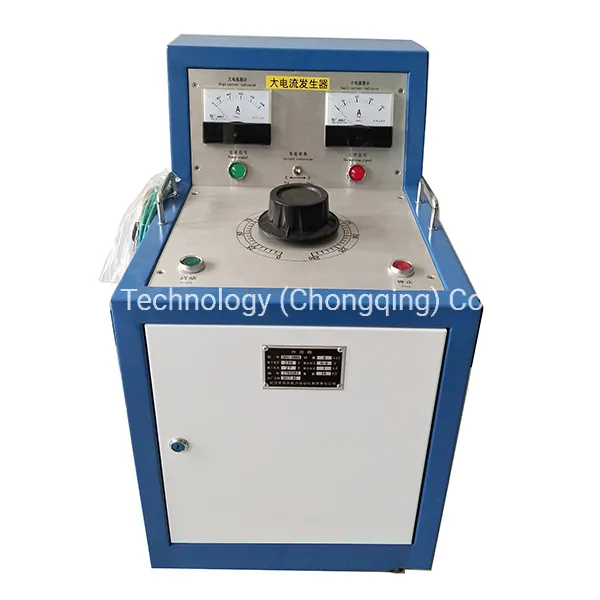

Integrated Desktop Type SLQ

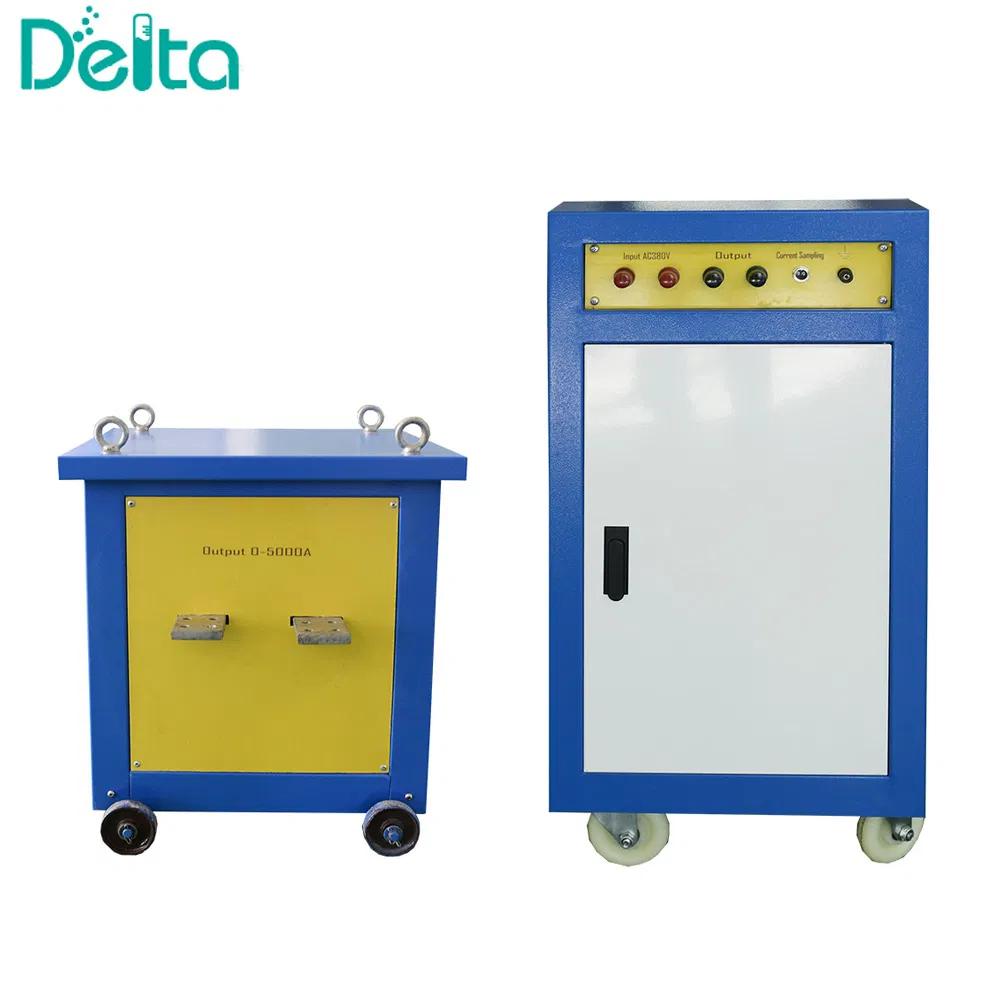

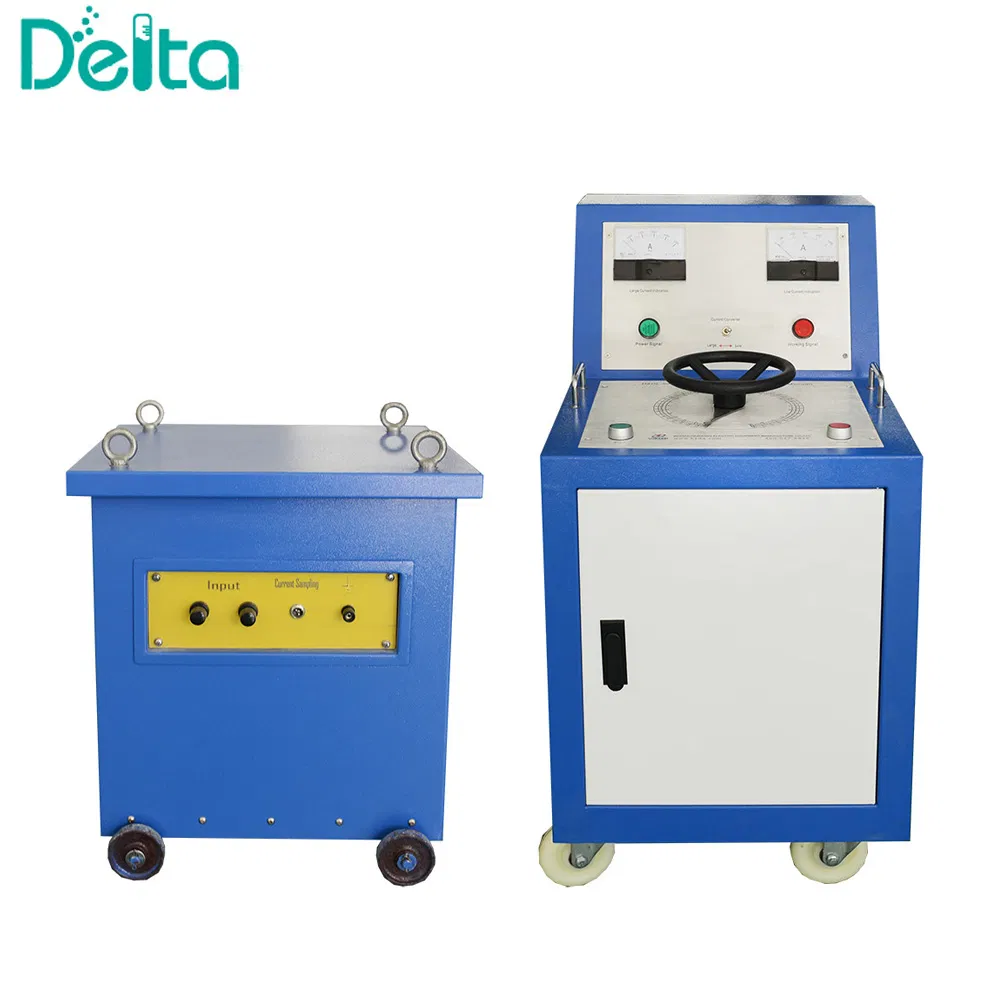

Separated Structure SLQ
📷 Detailed Photos

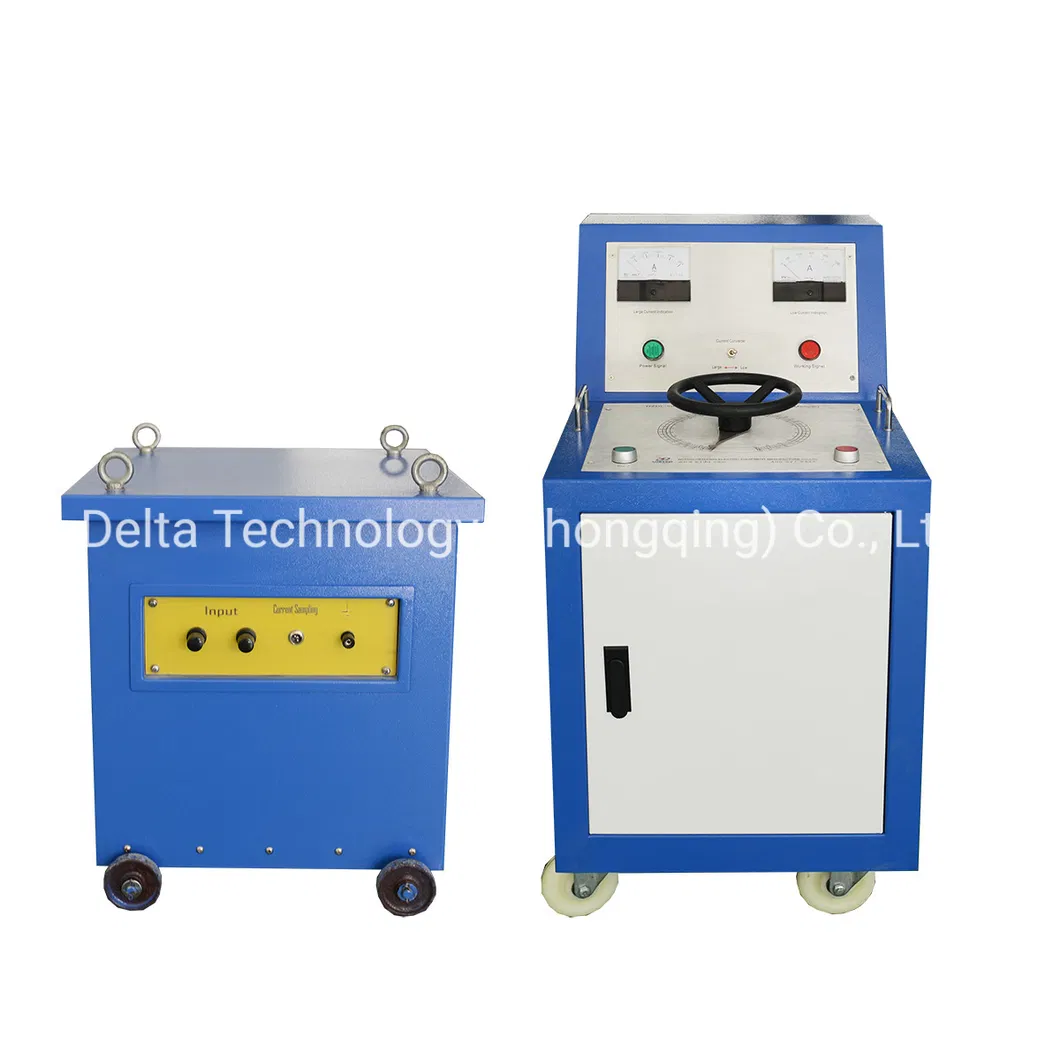

Detail 1

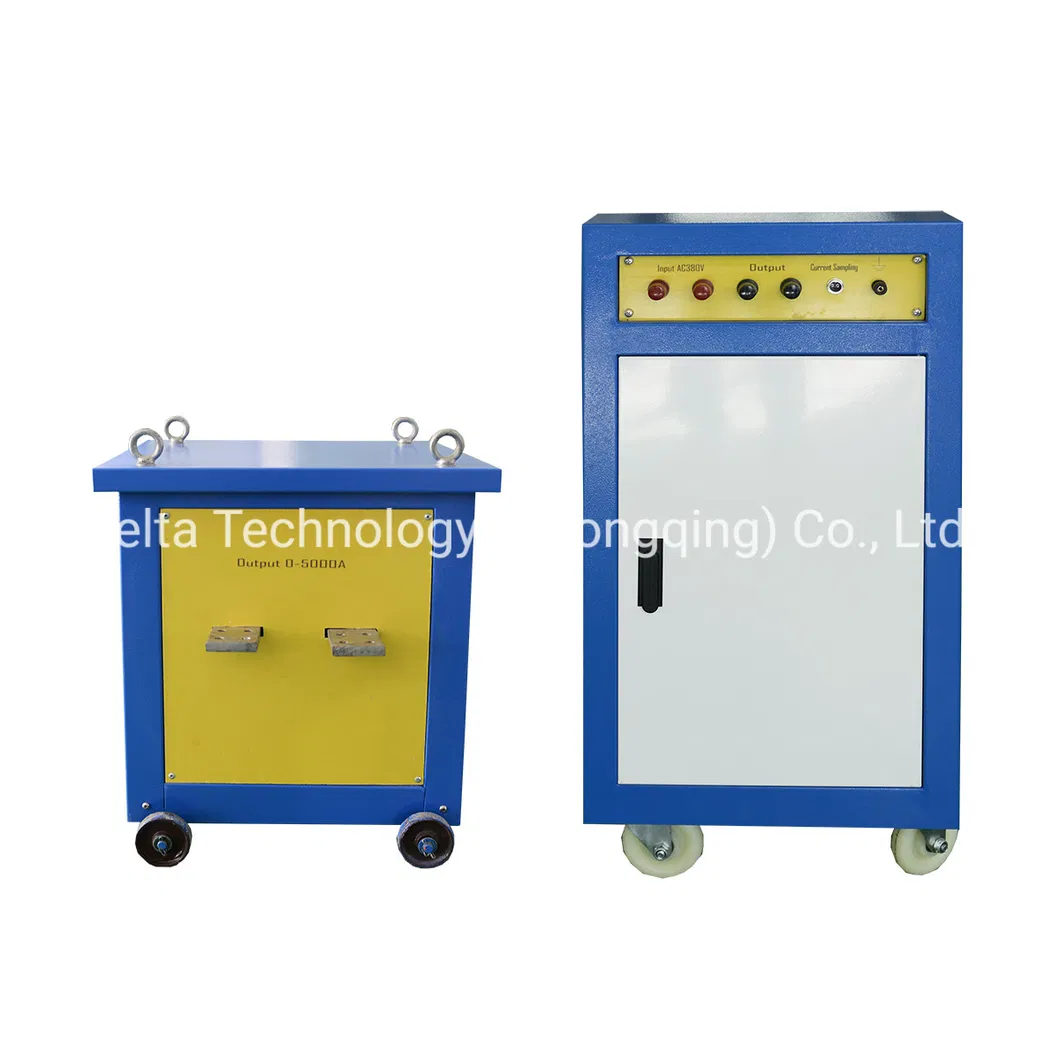

Detail 2

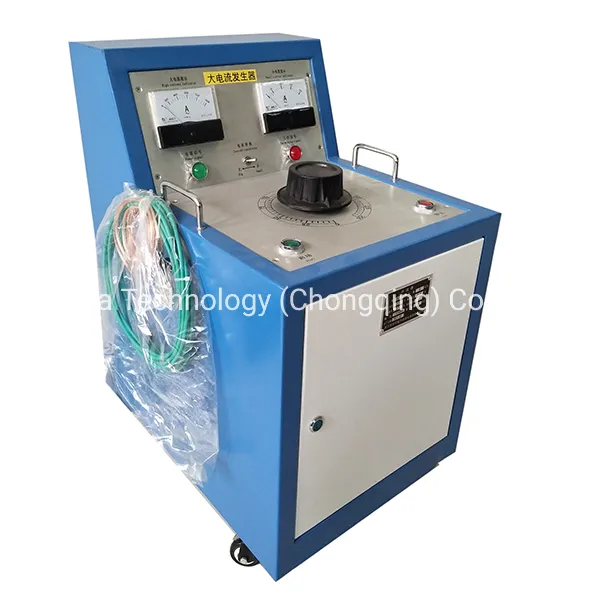

Detail 3

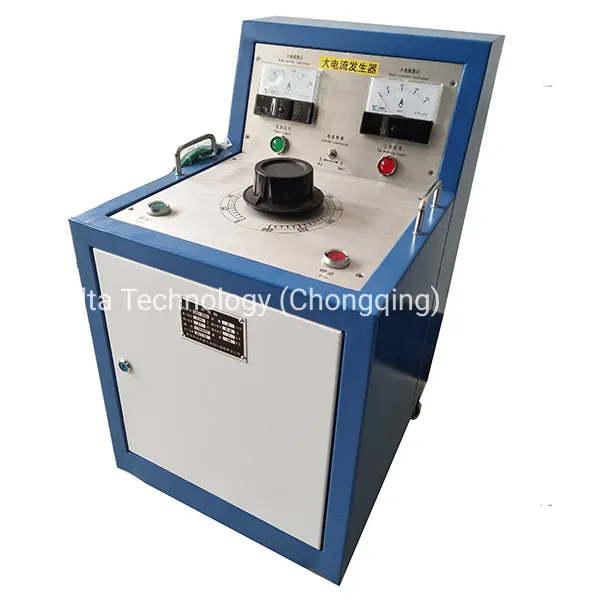

Detail 4
Full System View
Operation Panel
Frequently Asked Questions
Q1: What is the primary application of the SLQ test system? A: It is primarily used to generate high current for electrical debugging in transformers, circuit breakers, and power distribution stations.
Q2: Can the output current be customized? A: Yes, the output current ranges from 1kA to 10kA and can be fully customized based on specific project requirements.
Q3: What are the differences between the three types of SLQ? A: We offer Box type and Integrated desktop types for current below 2500A, and Separated structures for high-capacity requirements above 2500A.
Q4: How does the cooling system work for intermittent use? A: For intermittent work, the device should run for less than 2.5 minutes and then shut down for 10 minutes to allow all components to cool down.
Q5: Is the equipment easy to move? A: Yes, it features a movable design with options for integrated or separated structures depending on the model's total weight.
Q6: What is the standard power supply for this system? A: The standard power supply is AC 220V, 50Hz, but capacity and voltage can be adjusted for specific industrial standards.
